Removing Rear Lid Hinge: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Two people are needed to replace the rear lid hinges.
1. 1.1. One person to support the rear lid.
2. 1.2. Another person to replace the hinges.

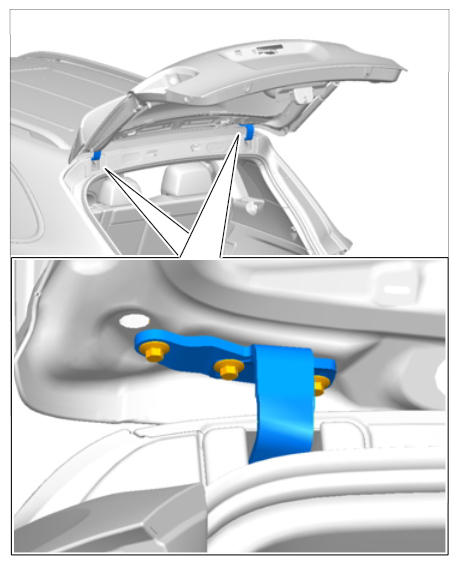

Unscrew and remove screws on the rear lid hinge.

Fig 1: Identifying Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

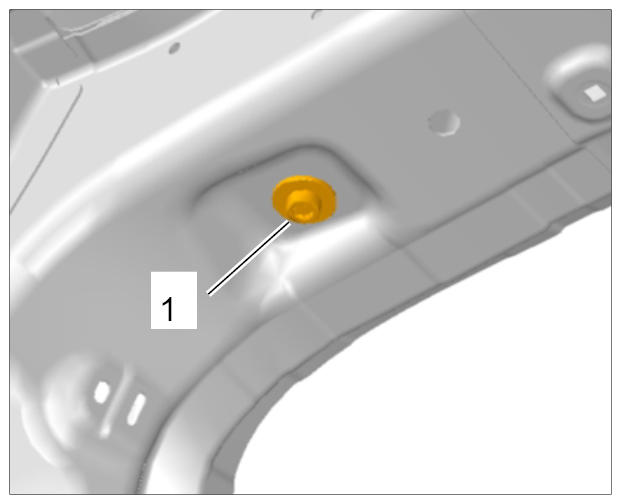

Unscrew and remove the screw -1- on the rear lid hinge.
Guide the hinge out through the hinge opening in the bodyshell.

Fig 2: Identifying Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
