Installing Rear Lid Hinge

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

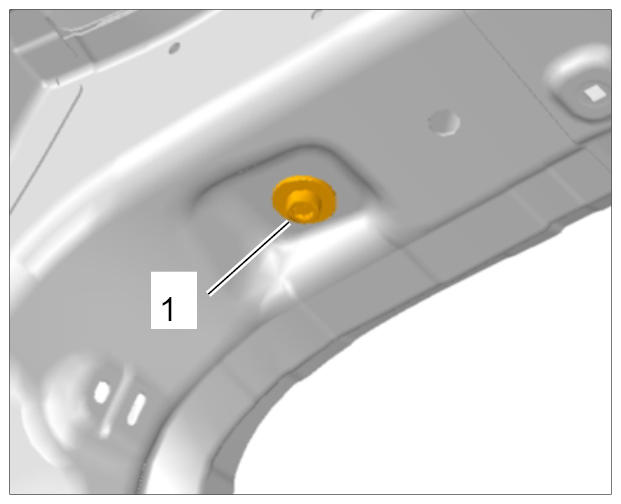

Tighten fastening screw -1- on the hinge to Tightening torque 23 Nm (17 ftlb.) .

Fig 1: Identifying Rear Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

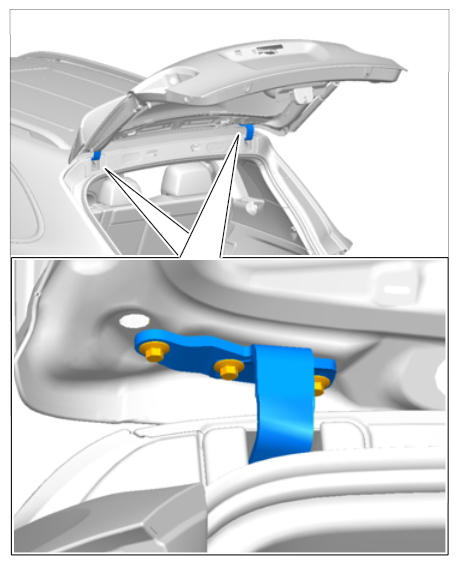

Tighten fastening screws for rear lid to Tightening torque 10 Nm (7.5 ftlb.) .

Fig 2: Identifying Rear Lid Hinge Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
