Disassembling Rear Lid

Information

• Some of the repair illustrations show only one side of the vehicle.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
• These must be carried out as a mirror image of the steps shown.

1. Loosen supports for rubber stop at the sides by turning them 90° with a screwdriver and remove them.
   Fig 1: Removing Rubber Stop

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

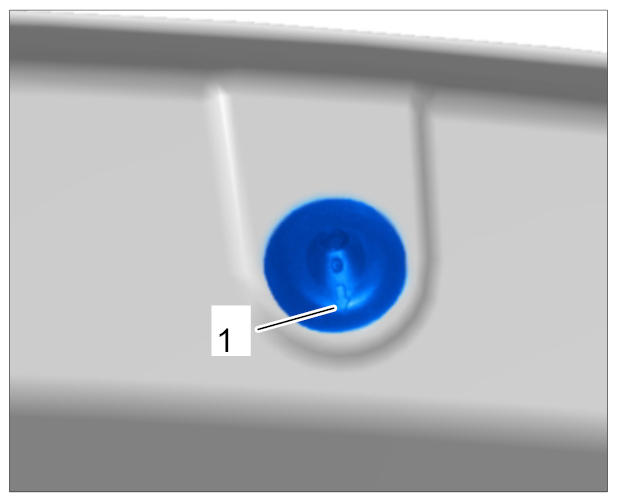

2. Unclip water drains at the bottom -1-  .
   Fig 2: Identifying Water Drain

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

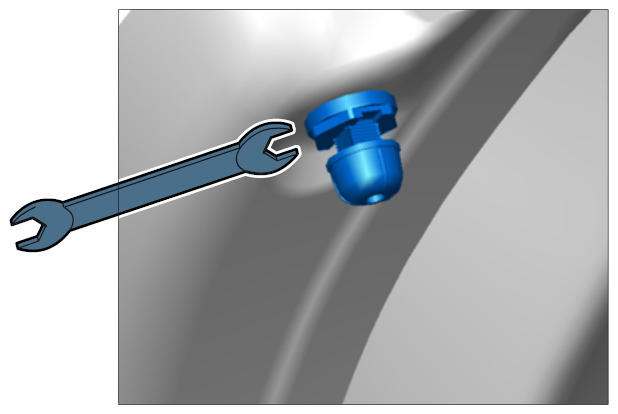

3. Remove adjusting elements.
   1. 3.1. Mark the position of both parts of the adjusting element -1 - 2-  with respect to each other.
      Fig 3: Identifying Adjusting Elements With Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

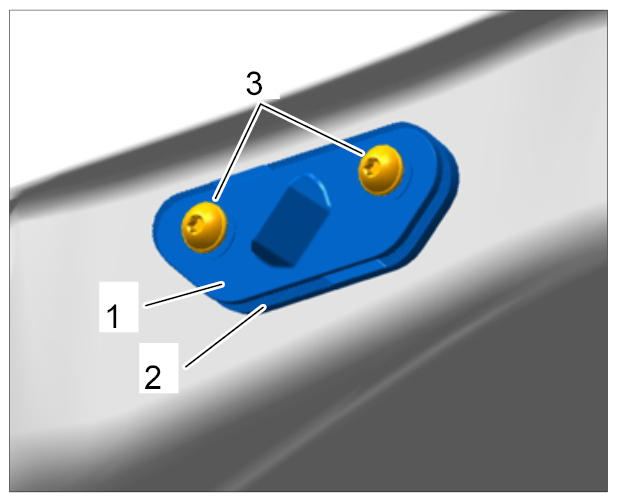

   2. 3.2. Loosen fastening screws -3-  and remove adjusting element.

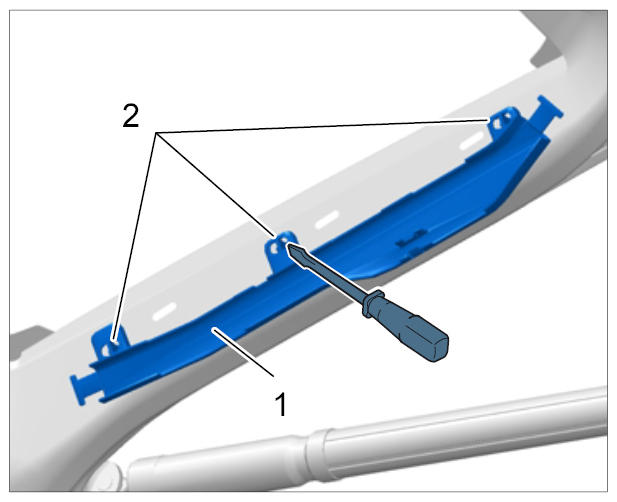

4. Unclip brackets for wire harness -1-  at the locking mechanisms -2-  using a screwdriver and remove them.
   Fig 4: Removing Bracket For Wire Harness For Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

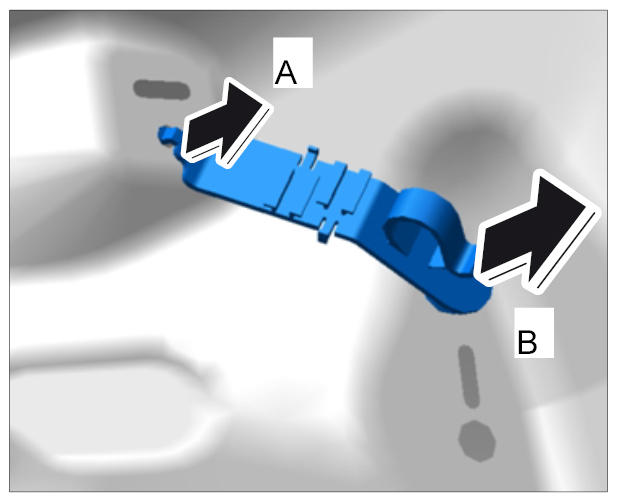

5. Pull brackets for wire harness out of the two locking mechanisms -A, B-  .
   Fig 5: Pulling Brackets For Wire Harness Out Of Locking Mechanisms

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

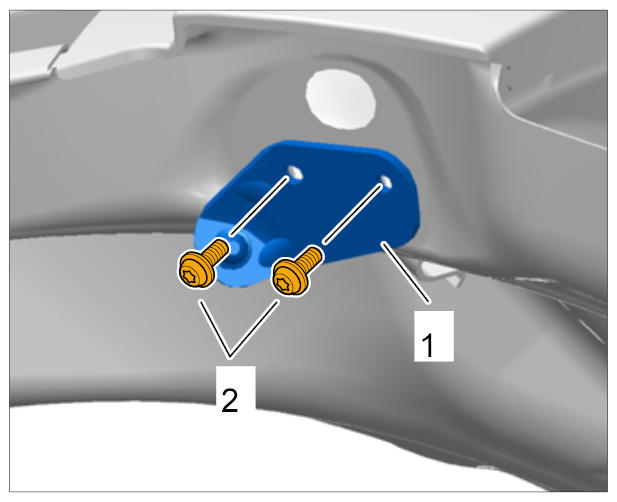

6. Unscrew fastening screws -2-  on the bracket for the pneumatic spring -1-  .
   Fig 6: Identifying Bracket For Pneumatic Spring With Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove number plate bracket if necessary.

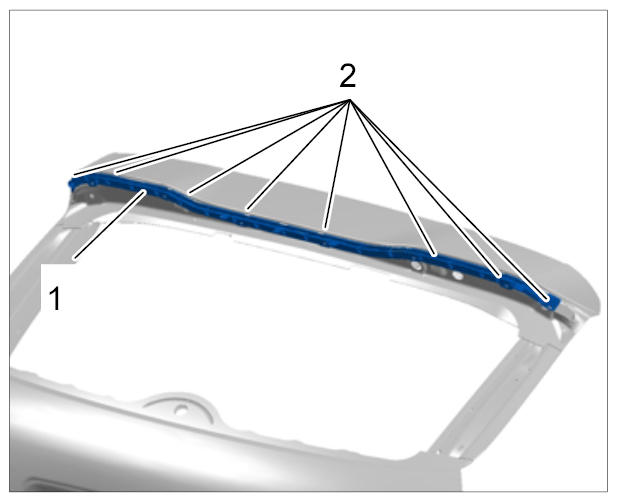

8. Drill out blind rivets -2-  on bracket for rear spoiler -1-  .
   Fig 7: Identifying Blind Rivets On Bracket For Rear Spoiler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

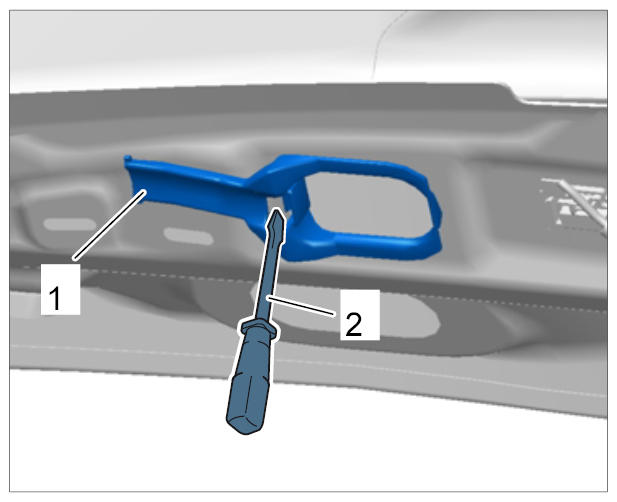

9. Unclip guides for wire harness -1-  using a screwdriver -2-  .
   Fig 8: Removing Guide For Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
