Assembling Rear Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.
These must be carried out as a mirror image of the steps shown.

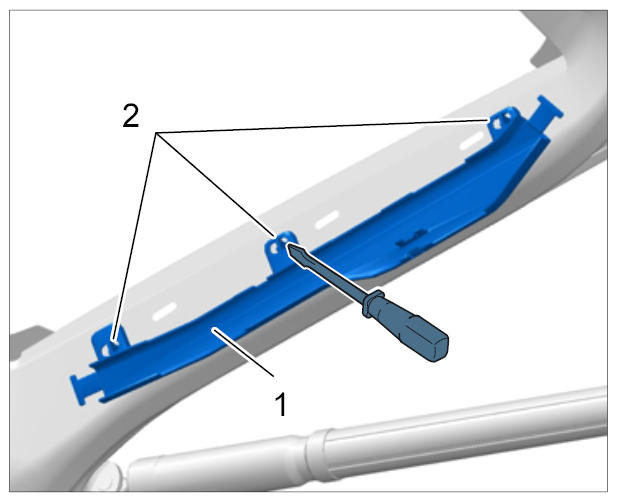

Fit supports for rubber stop at the sides and screw them in by turning them 90° with a screwdriver.

Fig 1: Installing Rubber Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

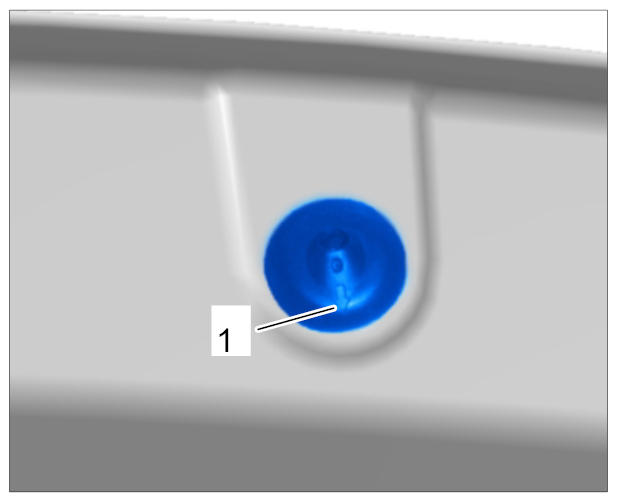

Fit water drains with arrow -1- inwards.

Fig 2: Identifying Water Drain
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install adjusting elements.

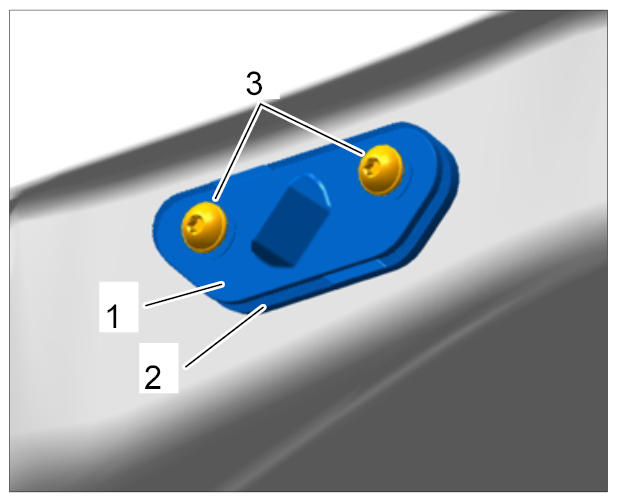

1. 3.1. Fit adjusting elements -1 - 2- at the marked position.

  Fig 3: Identifying Adjusting Elements With Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Tighten fastening screws -3- to → Tightening torque: 6 Nm (4.5 ftlb.) .

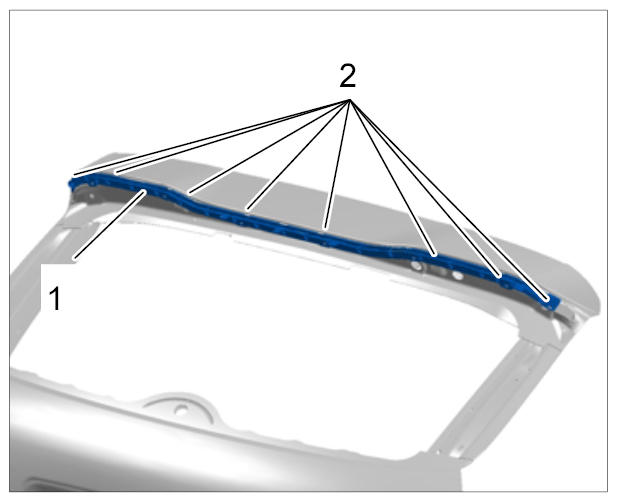

Press in brackets for wire harness -1- at the locking mechanisms -2- .

Fig 4: Installing Bracket For Wire Harness For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The bracket for the wire harness must be replaced during assembly.

Fig 5: Installing Bracket For Wire Harness For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

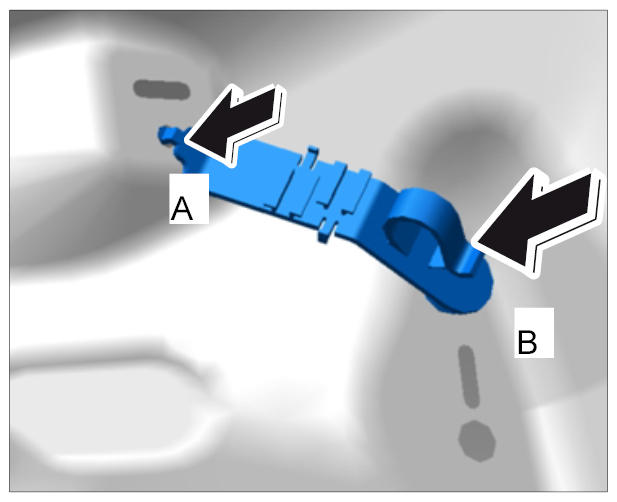

Guide in brackets for wire harness -A- and press in locking mechanism -B- .

Fig 6: Identifying Bracket For Wire Harness For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

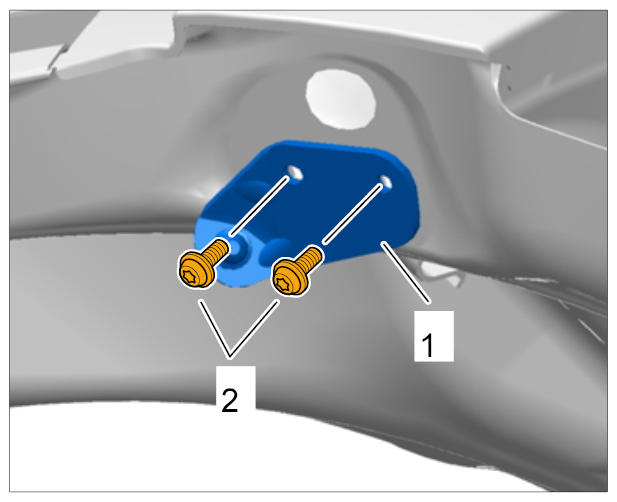

Tighten fastening screws -2- for bracket for pneumatic spring -1- to → Tightening torque: 10 Nm (7.5 ftlb.) .

Fig 7: Identifying Bracket For Pneumatic Spring And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install number plate bracket if necessary.

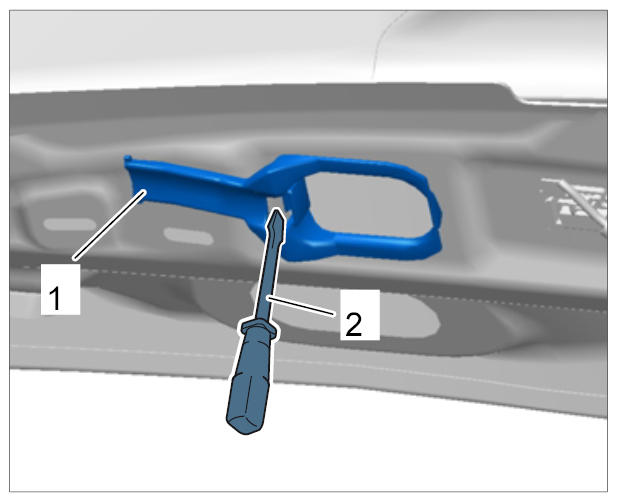

Rivet bracket for rear spoiler -1- to the rear lid with blind rivets -2- . Hand riveting tool Nr.124-1 Pos.1

Fig 8: Identifying Rear Spoiler To Rear Lid With Blind Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in guides for wire harness -1- .

Fig 9: Installing Guide For Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
