Technical Values: Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

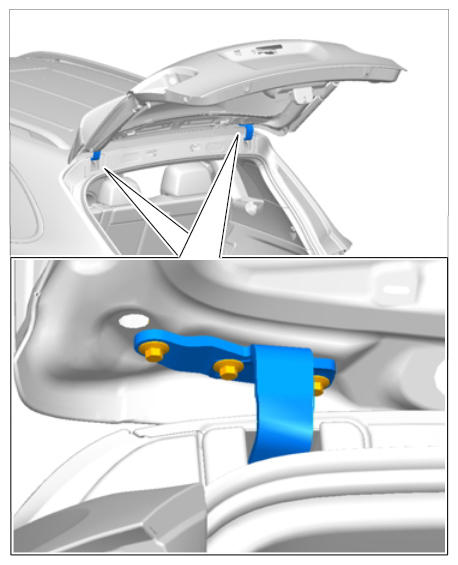

| Fastening screw for rear lid hinge | Item 1 | Tightening torque | 23 Nm (17 ftlb.) | ||
|
Screw for hinge |
|||||

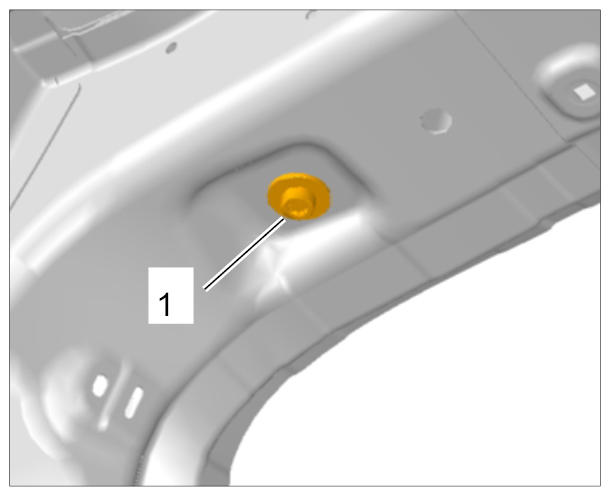

| Fastening screw on rear lid | Tightening torque | 10 Nm (7.5 ftlb.) | |||
|
Rear lid mounting |
|||||

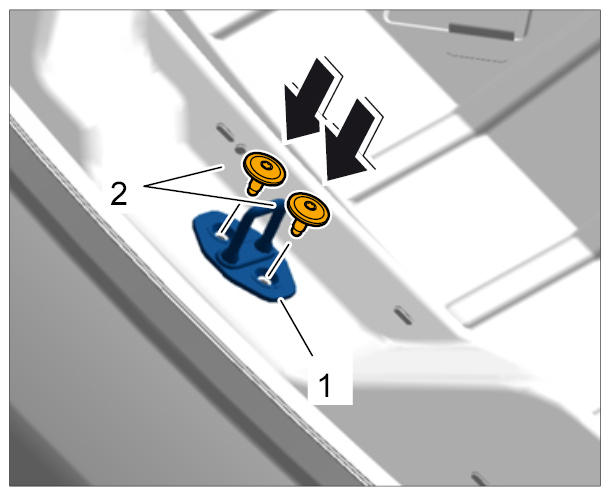

| Fastening screw for rear lid lock | Item 2 | Tightening torque | 18 Nm (13 ftlb.) | ||
|
Installing lower part of lid lock |
|||||

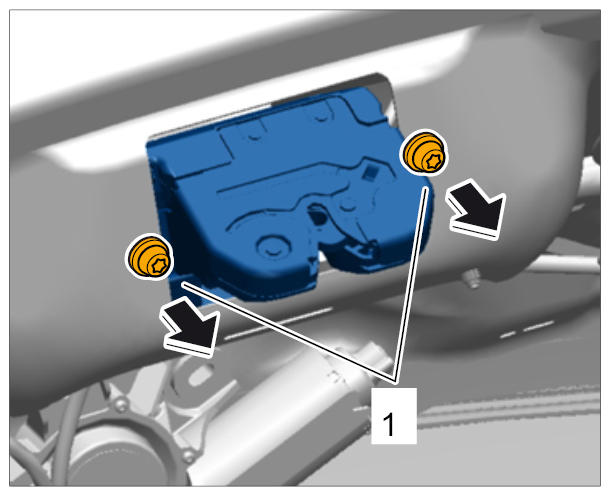

| Fastening screw securing upper part of lid lock to rear lid | Item 1 | Tightening torque | 12 Nm (9 ftlb.) | ||
|
Unscrewing fastening screws |
|||||

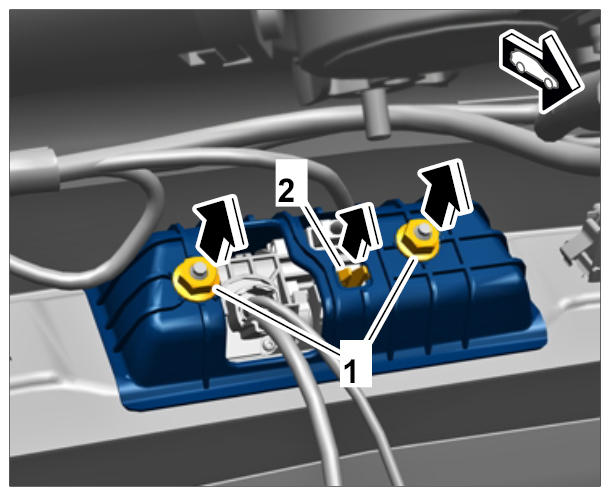

| Fastening nut for rear lid release | Tightening torque | 6 Nm (4.5 ftlb.) | |||
|
Removing cover plate |
|||||

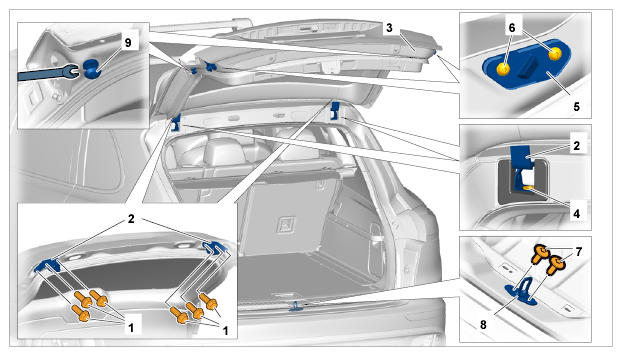

| Fastening screw for lid adjusting elements, side | Item 6 | Tightening torque | 6 Nm (4.5 ftlb.) | ||
|
Adjusting rear lid |
|||||

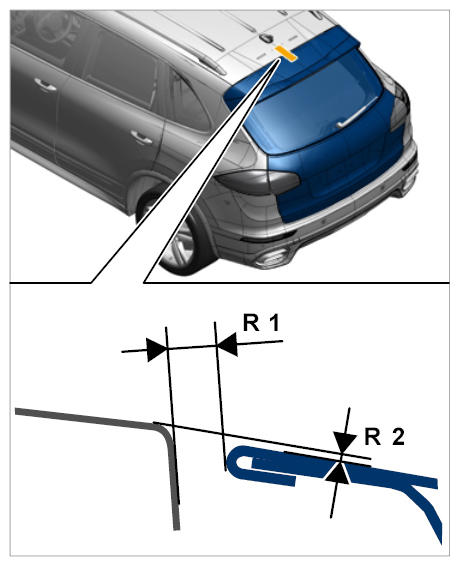

| Spoiler to roof (R1) | Gap dimension | 5.5 mm | +/-1 mm | ||
|
Rear lid to roof |
|||||
| Spoiler to roof (R2) | Gap dimension | 1 mm | +/-1 mm | ||
|
Rear lid to roof |
|||||

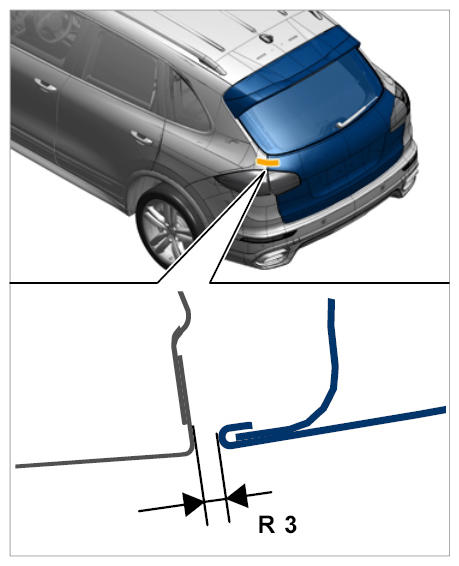

| Lid to side panel (R3) | Gap dimension | 4 mm | +/-1 mm | ||
|
Rear lid to side panel |
|||||

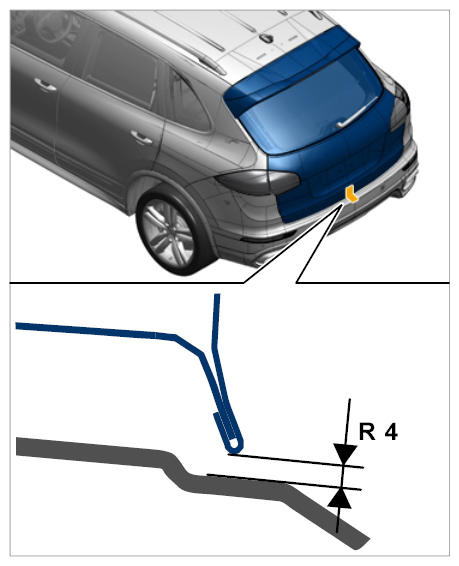

| Lid to rear apron (R4) | Gap dimension | 4 mm | +/-1 mm | ||
|
Rear lid to rear apron |
|||||
