Gap Dimensions Of Rear Lid
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

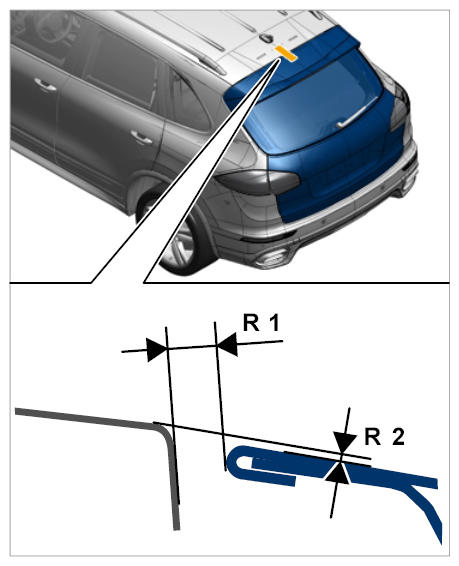

| Spoiler to roof (R1) | Gap dimension | 5.5 mm | +/-1 mm | ||
|
Rear lid to roof |
|||||
| Spoiler to roof (R2) | Gap dimension | 1 mm | +/-1 mm | ||
| Rear lid to roof | |||||

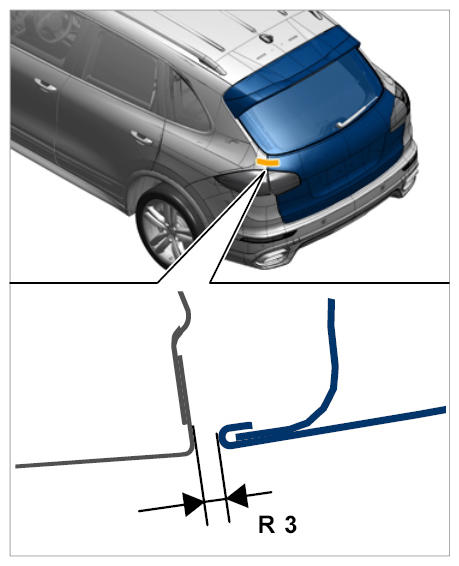

| Lid to side panel (R3) | Gap dimension | 4 mm | +/-1 mm | ||
|
Rear lid to side panel |
|||||

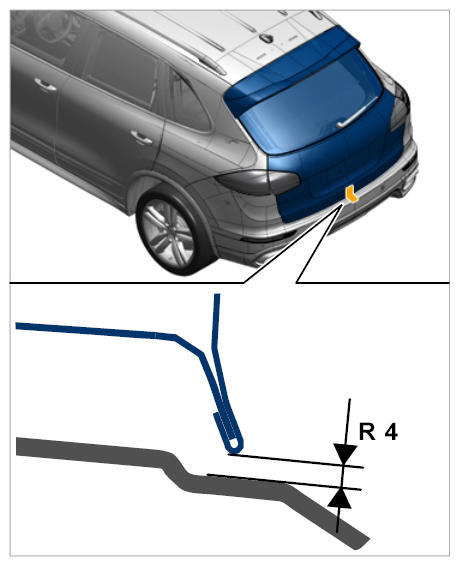

| Lid to rear apron (R4) | Gap dimension | 4 mm | +/-1 mm | ||
|
Rear lid to rear apron |
|||||
