Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing upper part of lid lock to rear lid Item 1 Tightening torque 12 Nm (9 ftlb.)

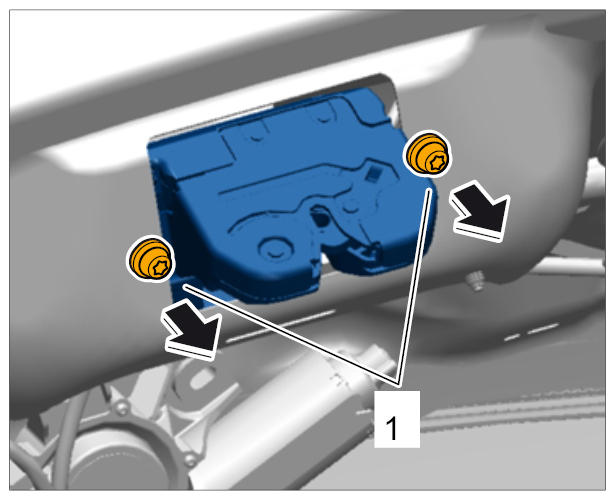

G09939314

Unscrewing fastening screws
