Removing Lower Part Of Rear Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark installation position of lower part of rear lid lock -1-  .

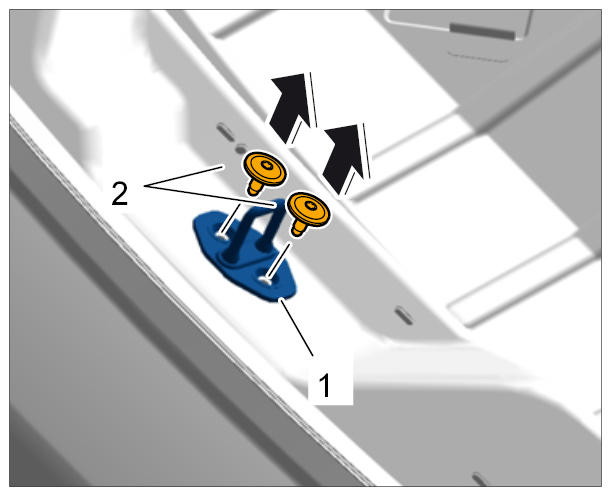

    Fig 1: Removing Lower Part Of Lid Lock
    G09939312Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  for lower part of lid lock -1-  .
  3. Remove lower part of lid lock.
