Installing Lower Part Of Rear Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position lower part of lid lock -1-  in line with the markings.

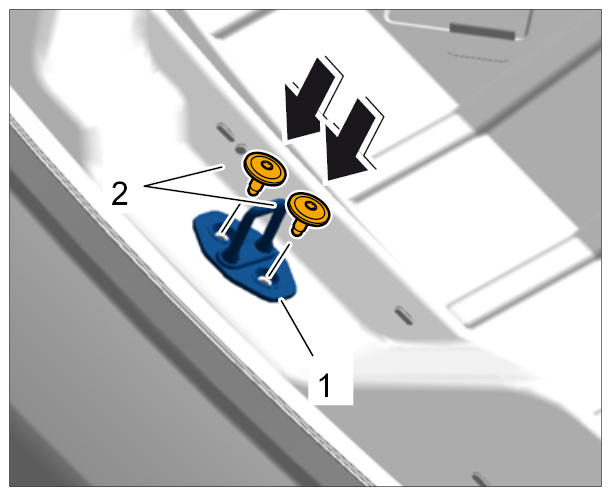

    Fig 1: Installing Lower Part Of Lid Lock
    G09939313Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw in fastening screws -2-  and tighten to Tightening torque 18 Nm (13 ftlb.)  until secure.
  3. Check adjustment of rear lid and re-adjust if necessary. → 559015 ADJUSTING REAR LID
