Removing Microswitch For Front Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

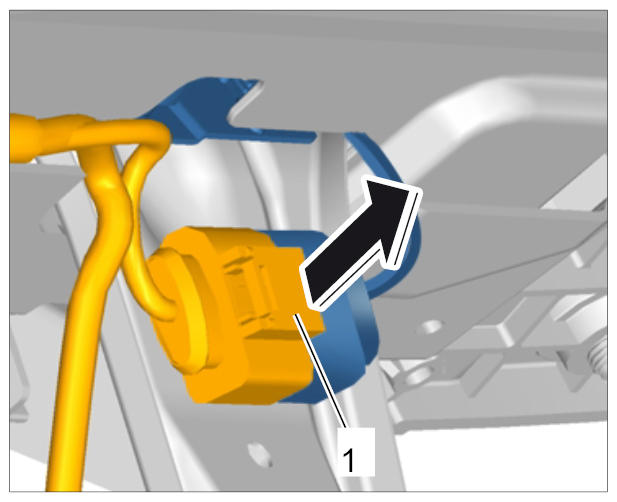

Unclip electric plug connection -1- from the lock support.

Fig 1: Removing Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

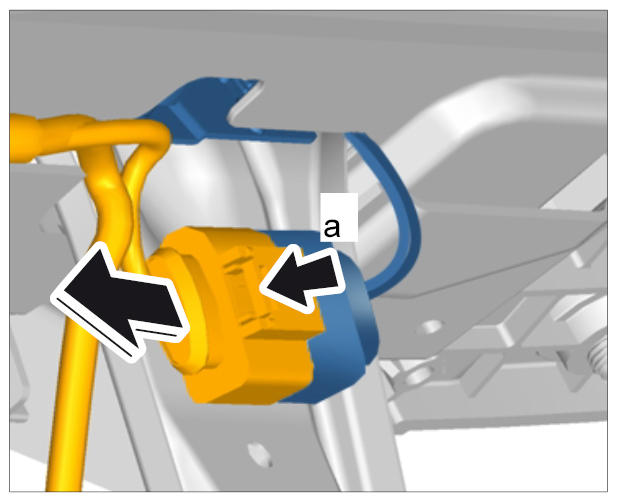

Release electric plug connection for the microswitch -A- and disconnect it.

Fig 2: Removing Electric Plug Connection For Microswitch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull lid lock up between the lock carrier and lock support and remove it.

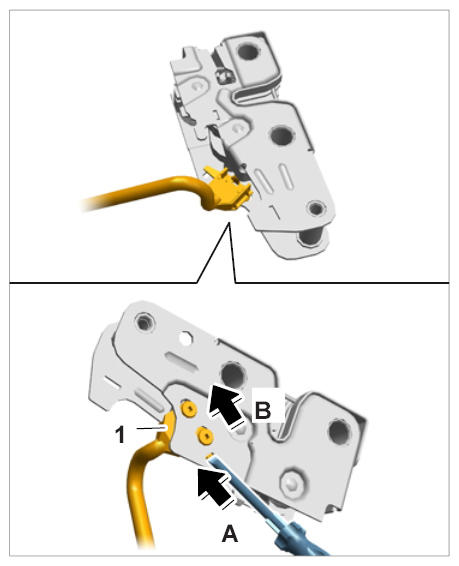

Insert a screwdriver into the cut-out in the lower part of the lid lock -A- and detach the microswitch -1- (-B- ).

Fig 3: Inserting Screwdriver Into Cut-Out In Lower Part Of Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove microswitch.
