Removing Release For Rear Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Screw off fastening nuts -1- for release for rear lid -A- .

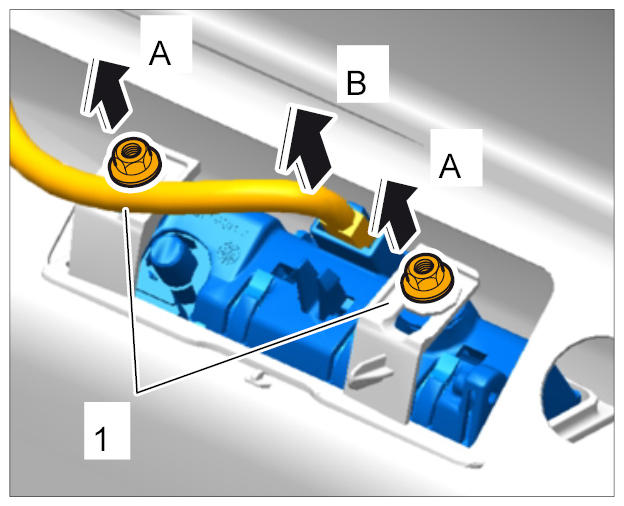

Fig 1: Removing Release For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug electric plug connection -B- .
Press rear lid release at the pins -1- outwards -A- .
Removing rear lid release
