Removing Rear Lid Release

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Release electric plug connections and disconnect connectors.

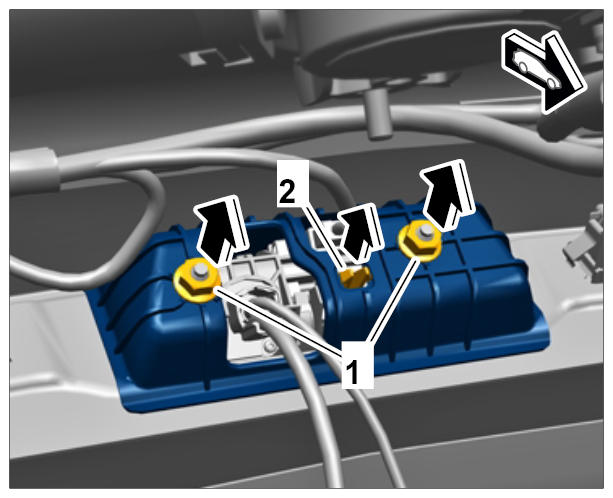

Unscrew fastening nuts -1- on the rear cover plate.
1. 2.1. Unclip cover plate from the catch -2- and remove it.

  Fig 1: Removing Cover Plate
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

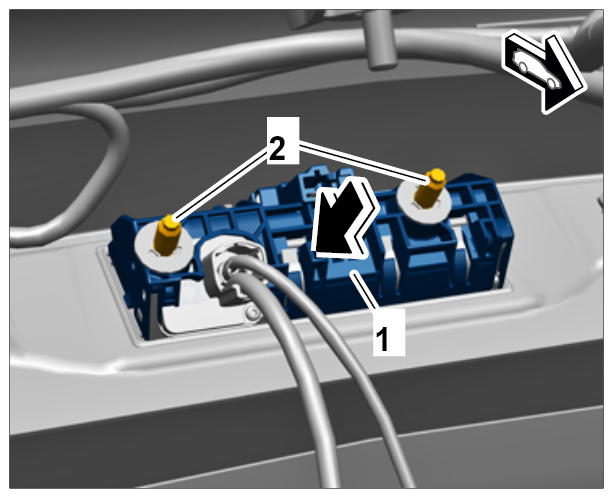

Press rear lid release -1- outwards at the bolts -2- .

Fig 2: Pressing Rear Lid Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
