Replacing Filler Flap

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The filler flap housing will be damaged during removal and must be replaced during installation.

Open the filler flap.
Remove outer part of filler flap -1- .

Fig 1: Pulling Off Outer Part Of Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

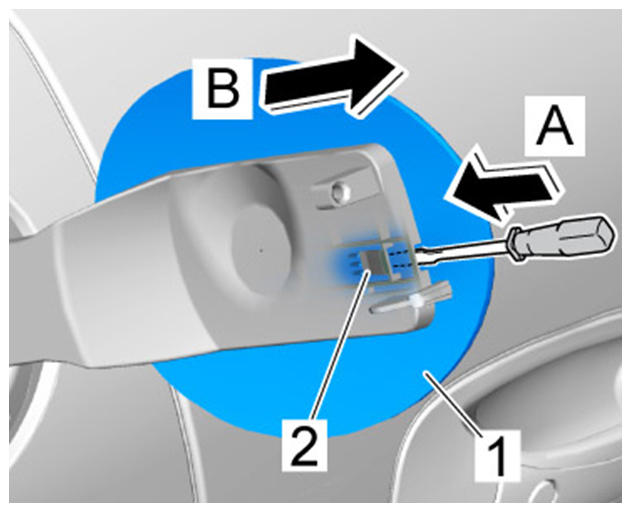

1. 2.1. Insert a screwdriver into the cut-out -A- and disengage the catch -2- .
2. 2.2. Pull off outer part of filler flap -1- (-B- ).

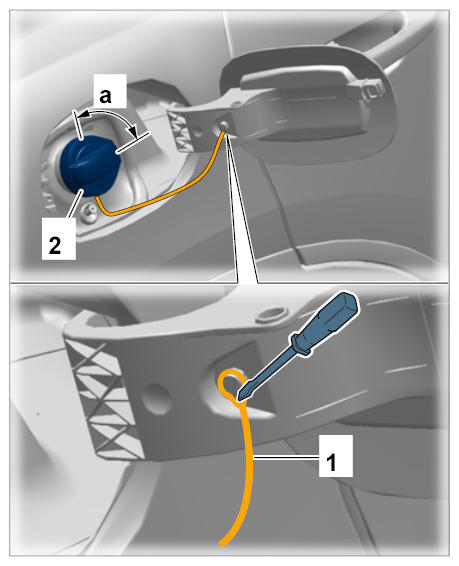

Disengage retaining strap -1- using a screwdriver.
Open the fuel tank cap -2- (-a- ) and remove it.

Fig 2: Removing Fuel Tank Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

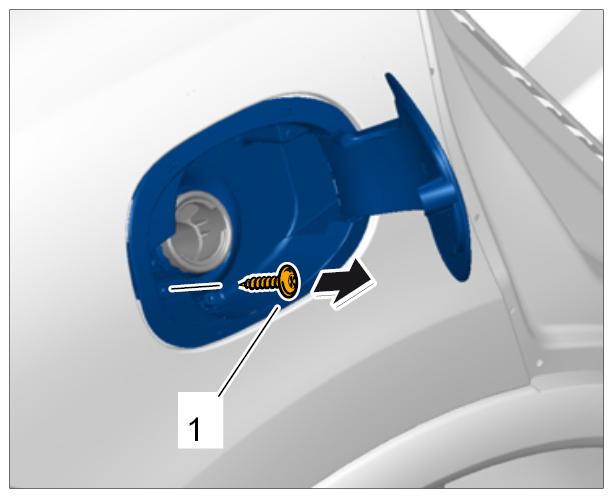

Unscrew fastening screw -1- for filler flap actuator.

Fig 3: Loosening Mounting For Filler Flap Actuator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

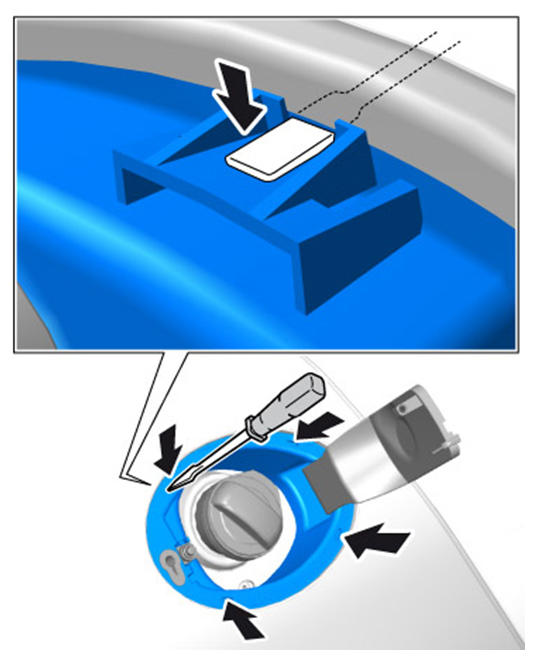

Use a screwdriver to puncture the four depressions and release the catches -arrow- .

Fig 4: Releasing Catches
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

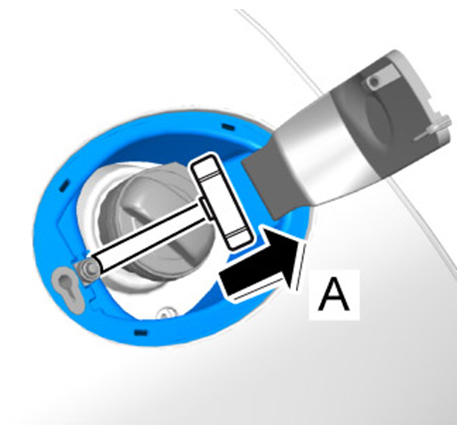

Pull out inner part of filler flap using hook 3370 (-arrow A- ).

Fig 5: Removing Inner Part Of Filler Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

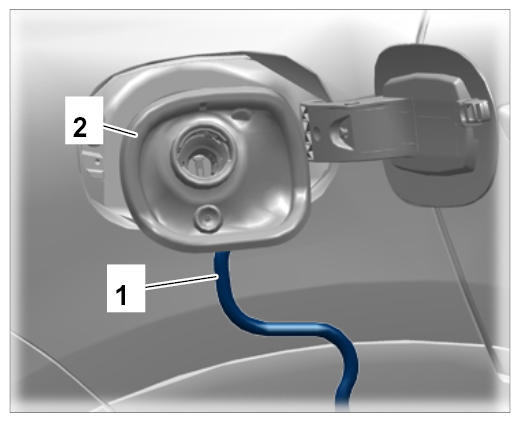

Pull drain hose (1) off inner part of filler flap (2) and remove inner part of filler flap (2).
