Removing Front Lid Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

During removal, the seal must not come into contact with hot engine components or adjacent units. This can cause damage to the seal.

Open the lid.
Remove front profile seal -1- .

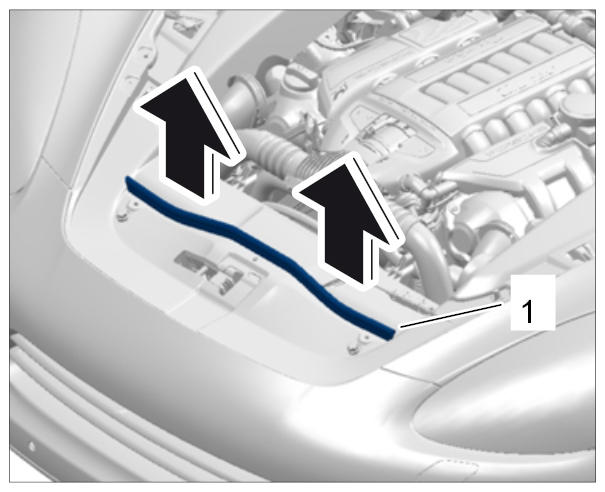

Fig 1: Removing Front Profile Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Carefully pull the front profile seal -1- up off the retaining flange.
Pull off rear profile seal -2- and -3- .
1. 3.1. Carefully pull the rear profile seals at the sides -2- up and forward off the retaining flange.

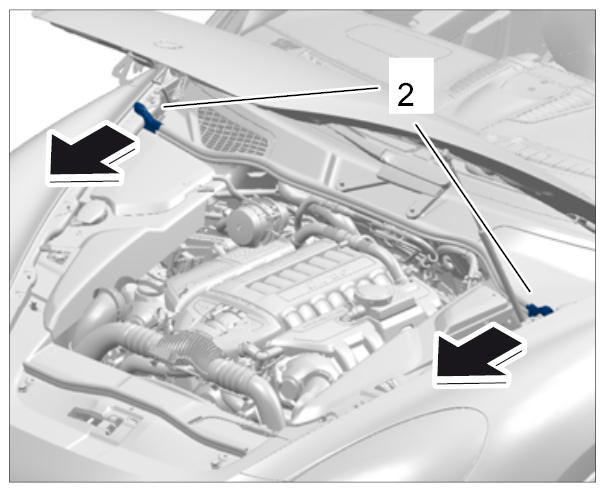

  Fig 2: Pulling Off Rear Profile Seal At Side
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Carefully pull the rear profile seal on the inside -3- forward off the retaining flange.

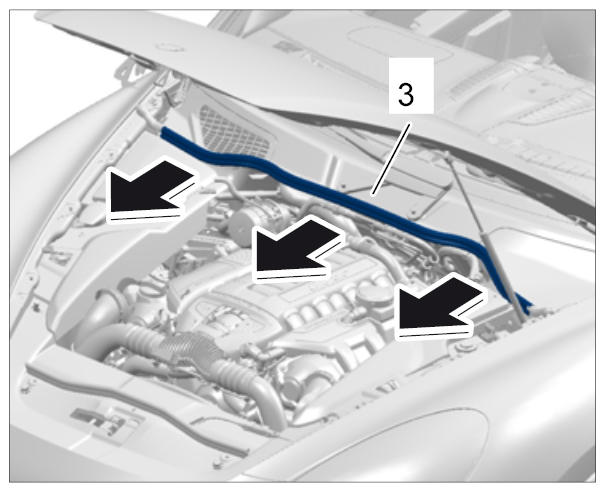

  Fig 3: Pulling Off Rear Profile Seal On Inside
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
