Removing Front Pneumatic Spring (On Lid Side)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Incorrect handling of gas-filled shock absorbers

Gas-filled shock absorbers can burst
Risk of eye injuries
Risk of bruising

→ Gas-filled shock absorbers must be in idle state before removal.

→ Open the lid.

→ Secure the lid to prevent it from closing accidentally following removal of the gas-filled shock absorbers.

→ Do not use force to open the gas-filled shock absorbers because of their high internal pressure.

Open the front lid.
Insert a screwdriver between the head of the pneumatic spring -1- and the safety clip.

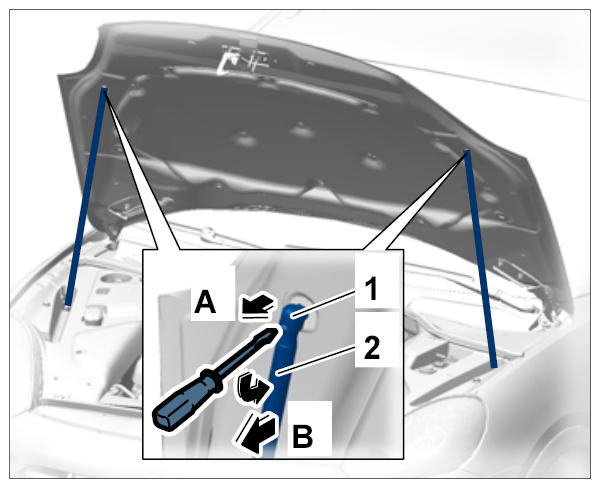

Fig 1: Inserting Screwdriver Between Head Of Pneumatic Spring And Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the safety clip by levering -A- the screwdriver towards the pneumatic spring -2- . The safety clip remains at the head of the pneumatic spring.
Pull the pneumatic spring off the ball pin. -B-
