Loosening Pneumatic Spring (On Body Side)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver between the safety clip -1-  and the head of the pneumatic spring -2-  .

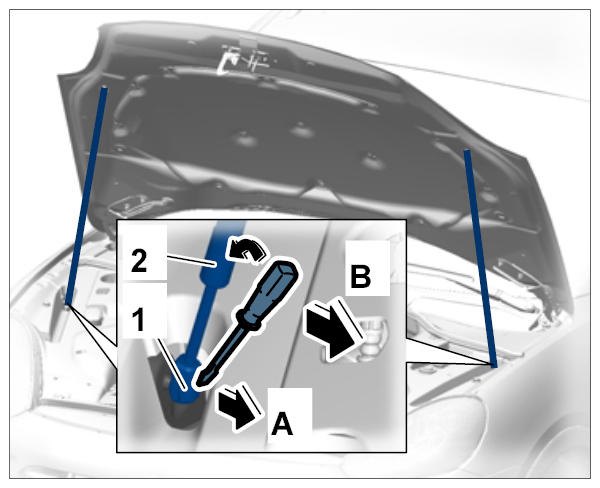

    Fig 1: Inserting Screwdriver Between Safety Clip And Head Of Pneumatic Spring
    G09939276Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen the safety clip -1-  by levering -A-  the screwdriver -2-  up and down. The safety clip -1-  remains at the head of the sleeve.
  3. Pull pneumatic spring -2-  off the ball pin. -B-
  4. Pull out the screwdriver.
  5. Remove pneumatic spring.
