Removing Front Lid Hinge

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Unscrew fastening screws -2- for lid hinge on front lid.

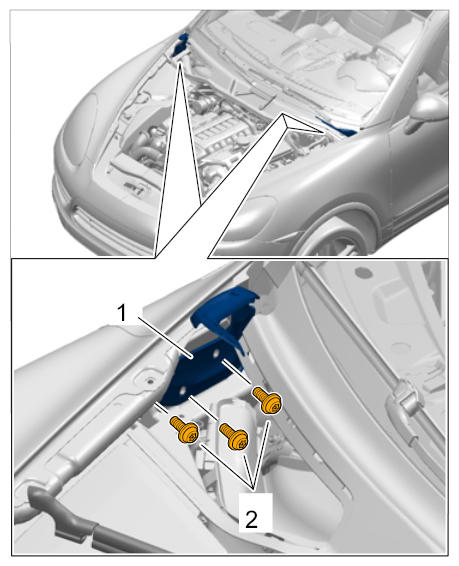

Fig 1: Loosening Mounting For Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lid hinge -1- .
Unclip cable clip -3- from the lid hinge.

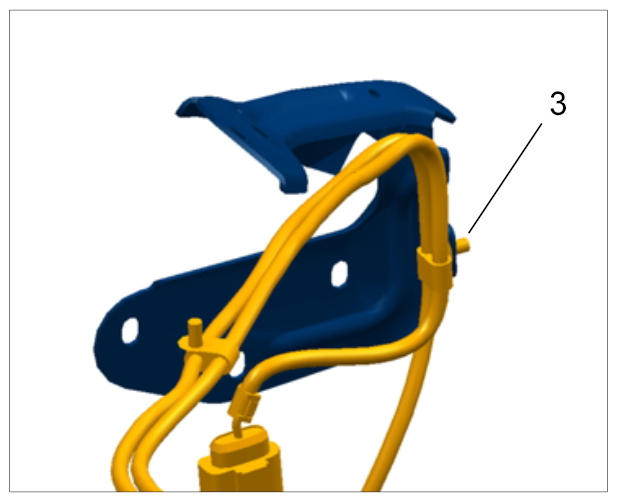

Fig 2: Identifying Cable Clip From Lid Hinge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
