Disassembling Front Lid: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew ball joints for pneumatic springs -2-  .

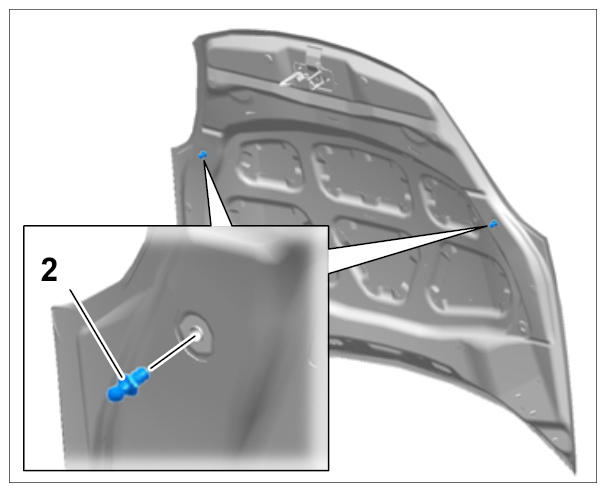

    Fig 1: Identifying Ball Joint For Pneumatic Spring
    G09939270Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove rubber sleeves at the left and right -1-  .

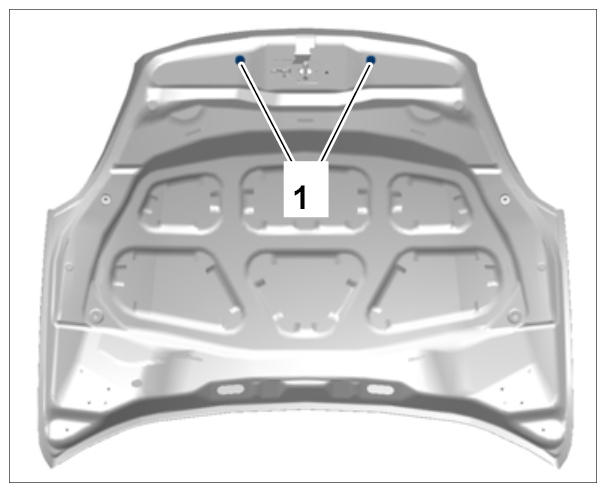

    Fig 2: Identifying Rubber Sleeves
    G09939271Courtesy of PORSCHE CARS NORTH AMERICA, INC.
