Removing Front Lid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

Information

Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.

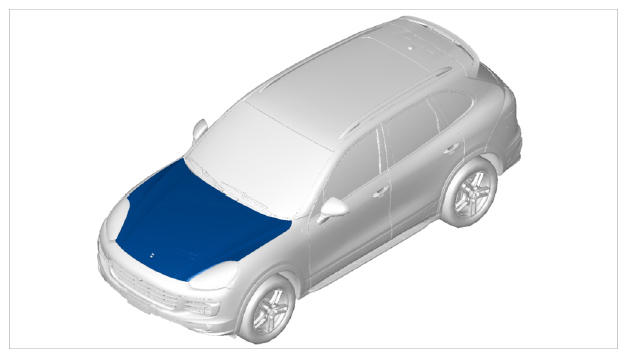

Fig 1: Identifying Front Lid Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove wire harness for front lid.
1. 1.1. Unclip sleeve for wire harness from the cut-out in a downward direction -arrow- using a suitable tool.

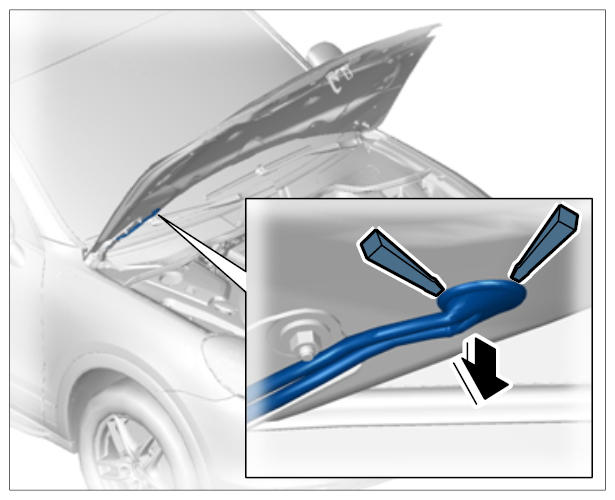

  Fig 2: Removing Wire Harness For Front Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Pull wire harness out of the lid.
Unclip cover -1- for wire harness on the hinge in a downward direction.

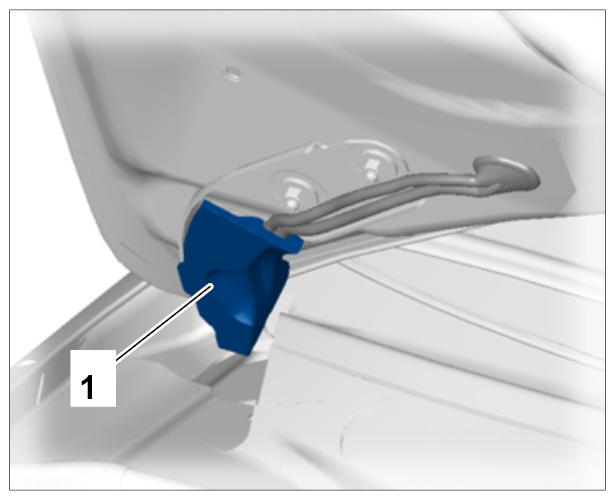

Fig 3: Identifying Cover For Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Remove cover for wire harness.
Remove front lid.
1. 3.1. Loosen upper mounting for pneumatic springs for front lid, pull pneumatic springs forward and set them down. → 553119 REMOVING AND INSTALLING FRONT PNEUMATIC SPRING
2. 3.2. Screw off fastening nuts -1- on the front lid.

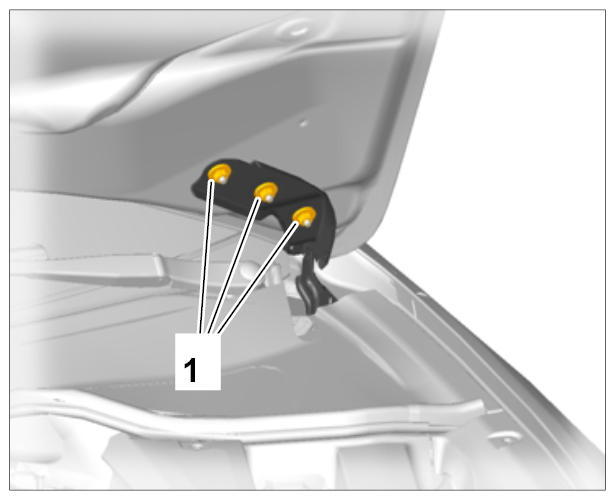

  Fig 4: Identifying Front Lid Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Pull the lid up and off.
