Gap dimensions of front wing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

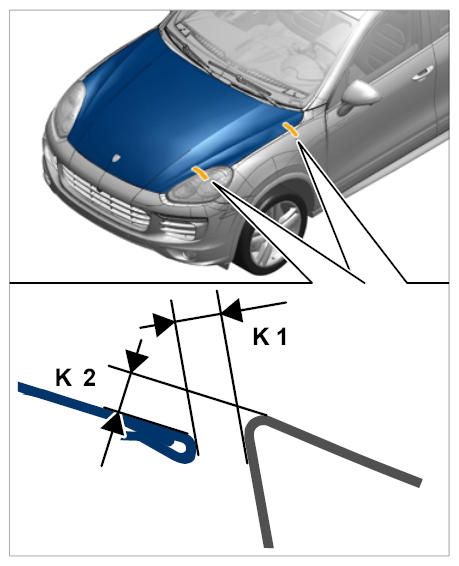

Rear wing to front lid (K1)   Gap dimension 3.5 mm +0.7 mm -0.9 mm
G09939257

Lid to wing
Rear wing to front lid (K2)   Gap dimension 2 mm
Lid to wing
