Technical Values -55- Front Lid
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening nut for front lid | Tightening torque | 20 Nm (15 ftlb.) | |||
|

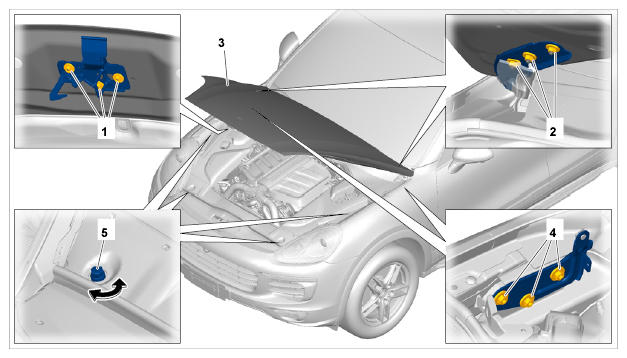

Front lid |
|||||

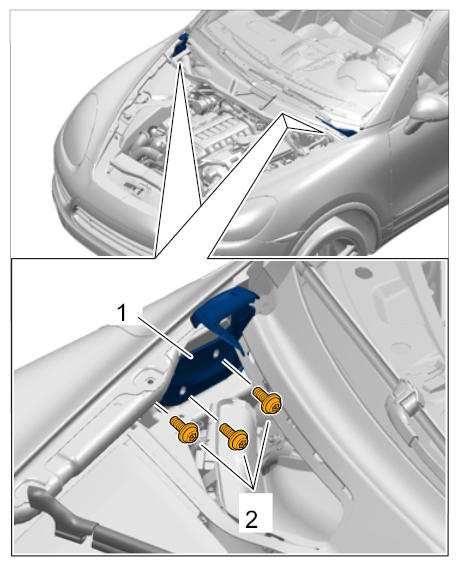

| Fastening screw securing lid hinge to body | Item 2 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Loosening mounting for lid hinge |
|||||

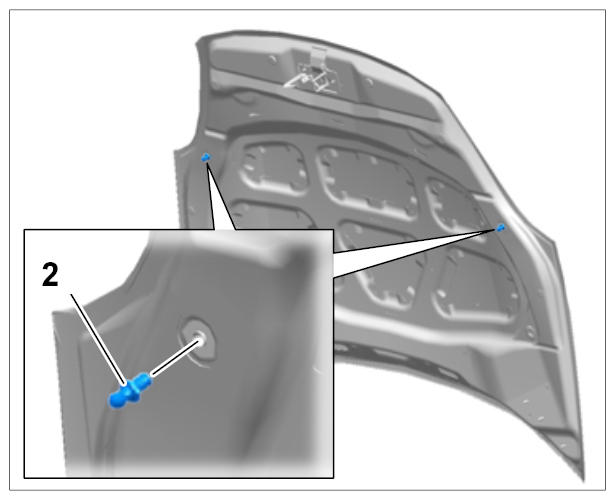

| Mounting head for pneumatic spring to front lid | Tightening torque | 20 Nm (15 ftlb.) | |||
|
Ball joint for pneumatic spring |
|||||

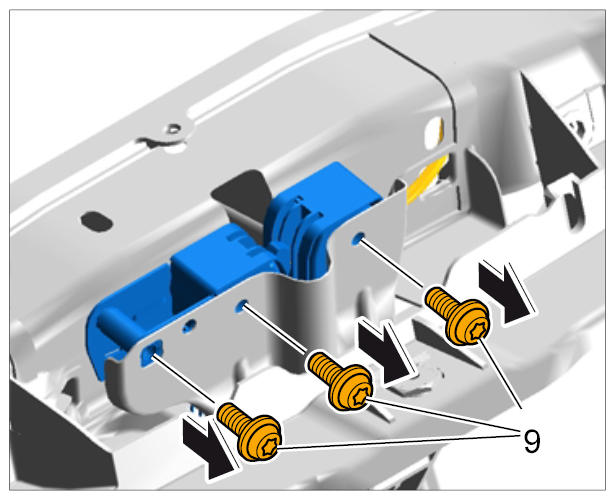

| Fastening screw for lower part of lid lock | Tightening torque | 12 Nm (9 ftlb.) | +/-1 Nm (+/- 0.5 ftlb.) | ||
|
Loosening lid lock |
|||||

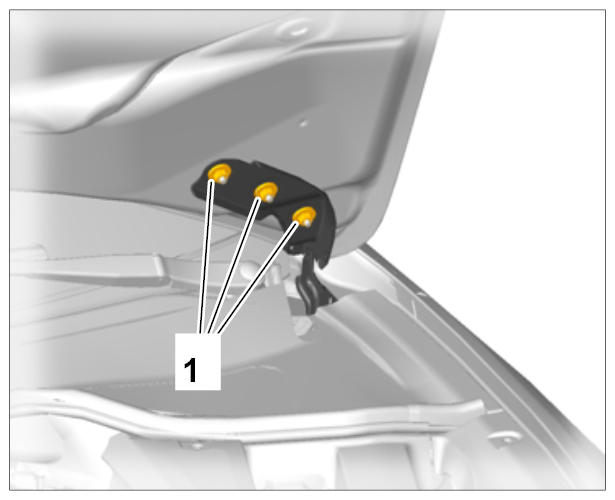

| Fastening nut on upper part of lid lock | Item 1 | Tightening torque | 12 Nm (9 ftlb.) | ||
|
Adjusting front lid |
|||||
