Removing Upper Part Of Front Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use a marking pen to mark the position of accessories with respect to each other before removal in order to reduce the amount of adjustment work required for gaps and joints.

  1. Open the front lid.
  2. Unscrew fastening nuts -1-  and remove upper part of lid lock -2-  .

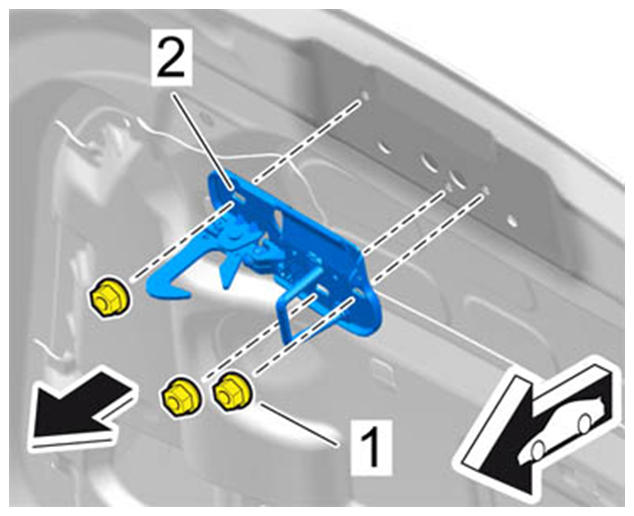

    Fig 1: Removing Upper Part Of Front Lid Lock
    G09939240Courtesy of PORSCHE CARS NORTH AMERICA, INC.
