Installing Upper Part Of Front Lid Lock: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The self-locking nuts and screws must always be replaced.

Roughly position upper part of lock -2- .

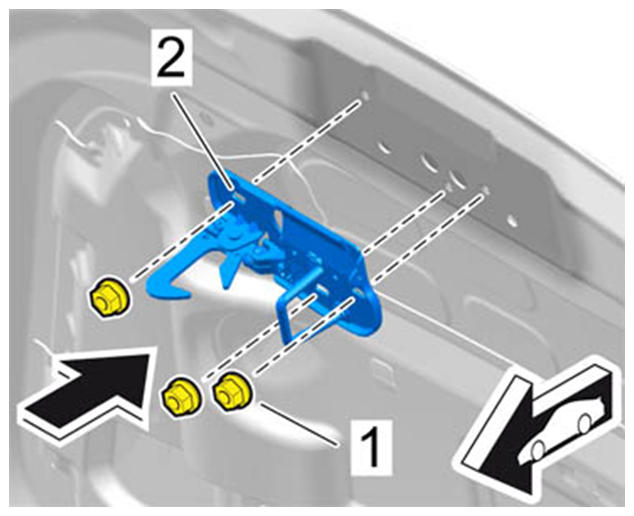

Fig 1: Installing Upper Part Of Front Lid Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit fastening nuts -1- so that the upper part of the lock -2- can still be moved.
Lower the lid slowly until the bar for the upper part of the lock -1- is touching the lower part of the lock. The bar must be centered flush with the slit in the lower part of the lock -2- .

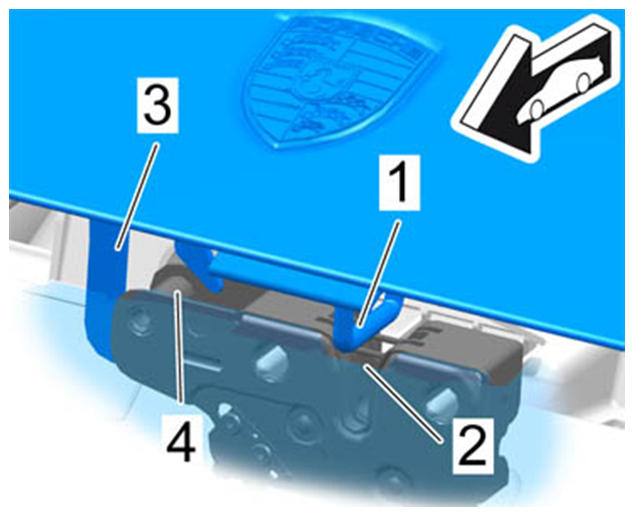

Fig 2: Identifying Upper Part Of Lock Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the lid.
Tighten fastening nuts to the specified tightening torque → Tightening torque: 12 Nm (9 ftlb.) .
