Removing Lower Part Of Front Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew fastening screws -9-  on lid lock.

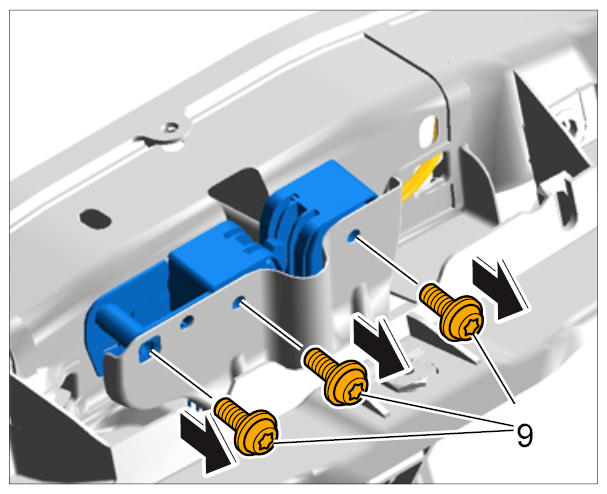

    Fig 1: Loosening Lid Lock
    G09939236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull up lid lock.
  3. Unclip actuating cable from the mounting.

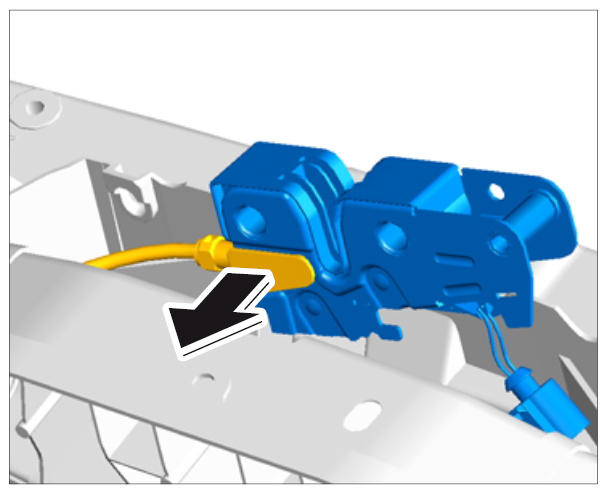

    Fig 2: Pulling Up Lid Lock
    G09939237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Release microswitch from the lid lock. → 558519 REMOVING AND INSTALLING MICROSWITCH FOR FRONT LID LOCK
