Installing Lower Part Of Front Lid Lock: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. The lower part of the front lid lock is installed in reverse order to removal.

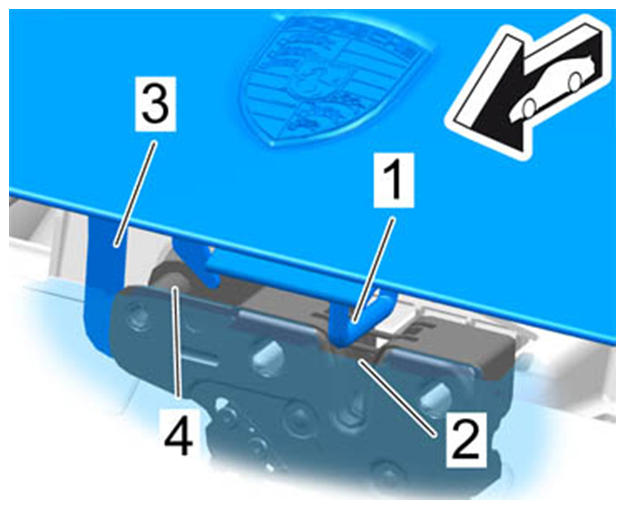

  2. Lower the lid slowly until the clip for the upper part of the lock -1-  is touching the lower part of the lock. The clip must be centered flush with the slit in the lower part of the lock -2-  .
    Fig 1: Identifying Fastening Screws On Lower Part Of Lid Lock
    G09939238Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Tighten fastening screws on lower part of lid lock to Tightening torque 12 Nm (9 ftlb.) +/-1 Nm (+/- 0.5 ftlb.)  .
