Removing From Separating Coupling To Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cable at the separating coupling.
1. 1.1. Unclip separating coupling from the body.
2. 1.2. Pull cable for lid lock -6- out of the separating coupling -5- .

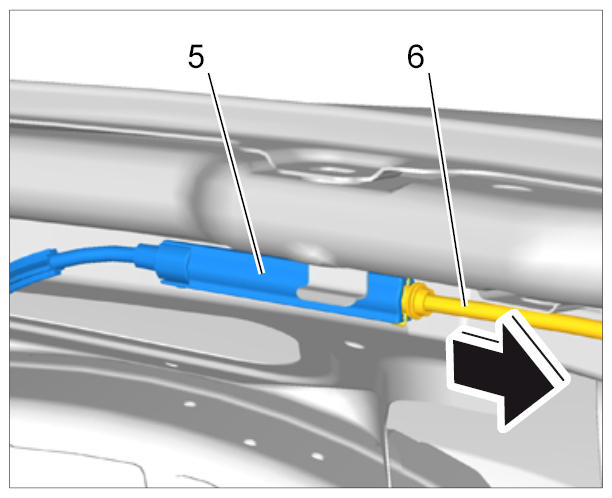

  Fig 1: Pulling Cable For Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Open separating coupling.

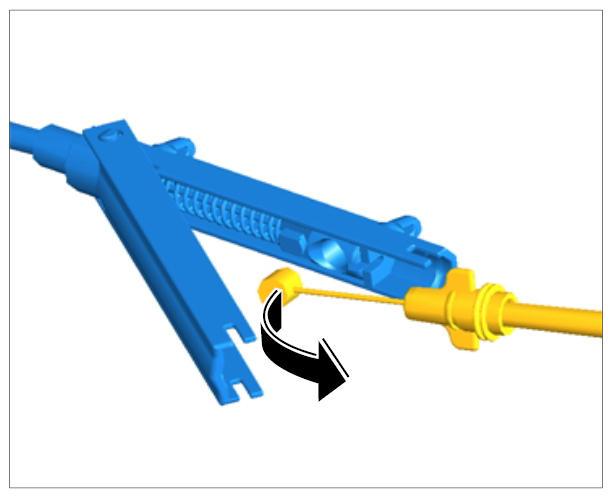

  Fig 2: Opening Separating Coupling
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Remove cable from the mounting.

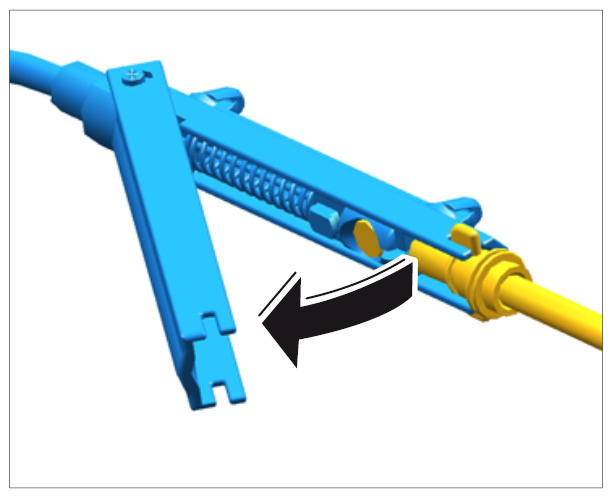

  Fig 3: Removing Cable From Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip cable for front lid at the lid lock. → 551719 REMOVING AND INSTALLING LOWER PART OF FRONT LID LOCK
1. 2.1. Unscrew fastening screws -9- on lid lock.

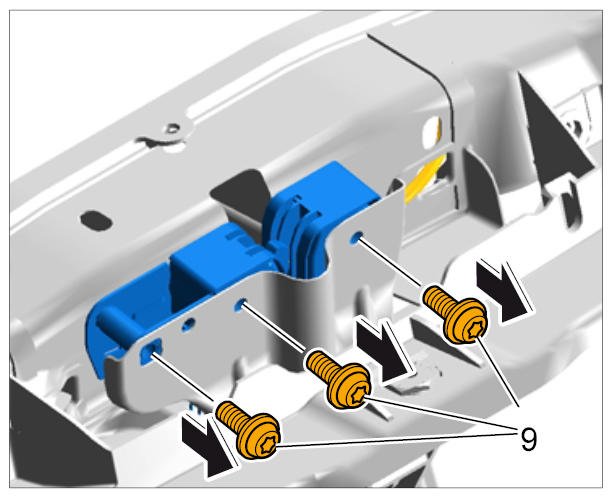

  Fig 4: Loosening Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Lift up lid lock.
3. 2.3. Disengage cable from the mounting.

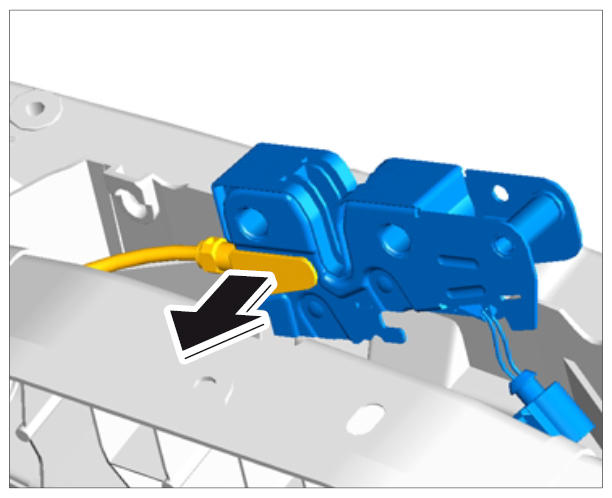

  Fig 5: Disengage Cable From Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage complete cable from separating coupling to lid lock at the brackets and guide it out.
