Removing From Release Mechanism To Separating Coupling

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cable for front lid at the release mechanism.

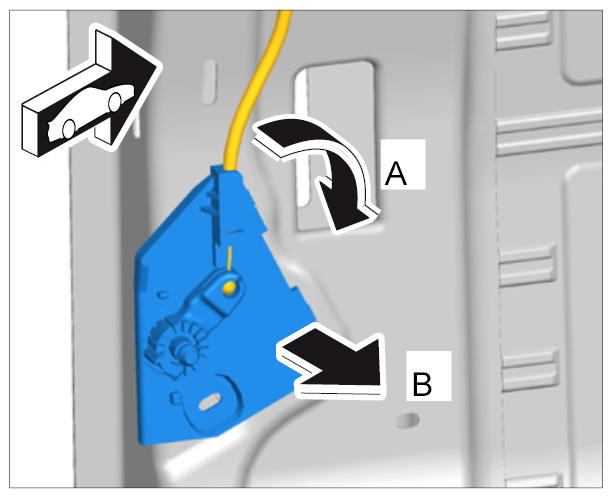

Fig 1: Disconnecting Cable For Lid Release
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unclip guide tube at the release mechanism and swivel the cable out -A- .
2. 1.2. Guide cable out of the mounting -B- .
Loosen release mechanism for front lid.

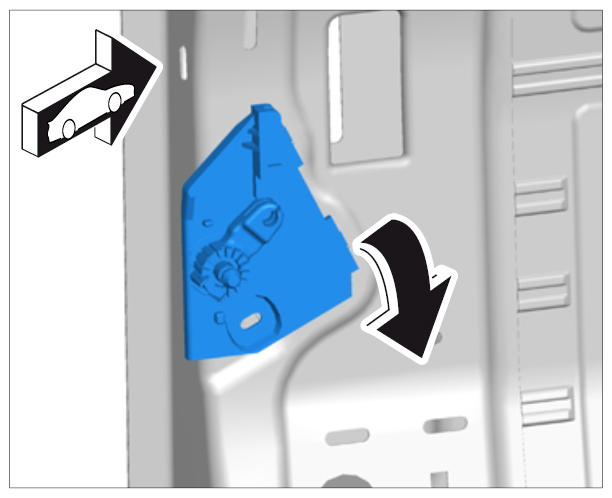

1. 2.1. Swivel release mechanism down and out.

  Fig 2: Removing Release Mechanism
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

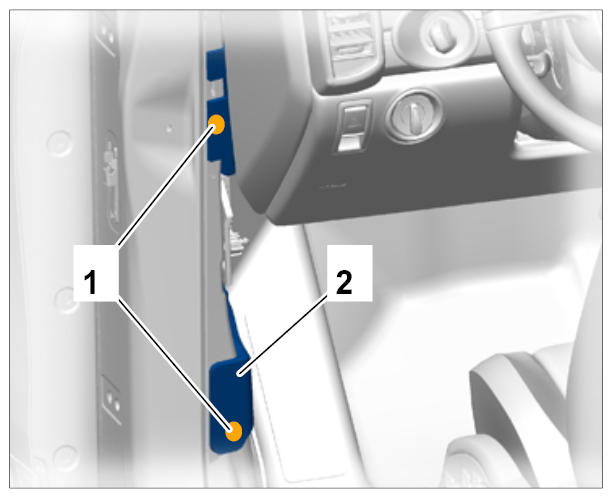

Pull out expansion rivets -1- and swivel insulating mat -2- aside.

Fig 3: Identifying Expansion Rivets And Swivel Insulating Mat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

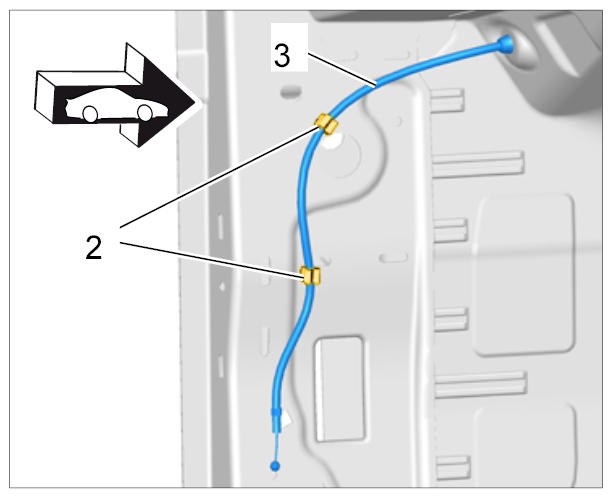

Unclip cable -3- from the fixing clips -2- .

Fig 4: Identifying Cable From Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect cable at the separating coupling.
1. 5.1. Unclip separating coupling from the body.

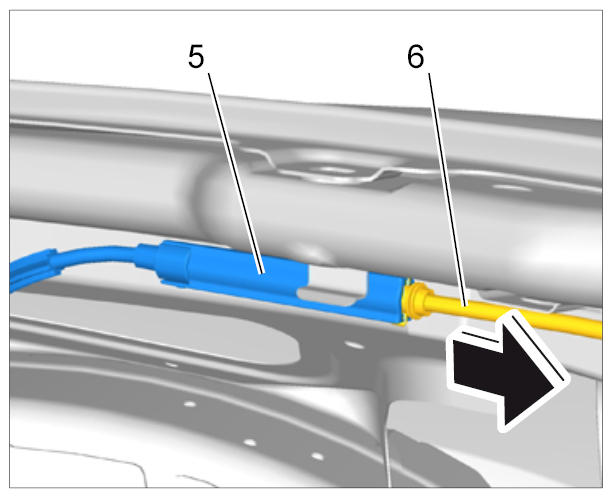

2. 5.2. Pull cable for lid lock -6- out of the separating coupling -5- .

  Fig 5: Pulling Cable For Lid Lock
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

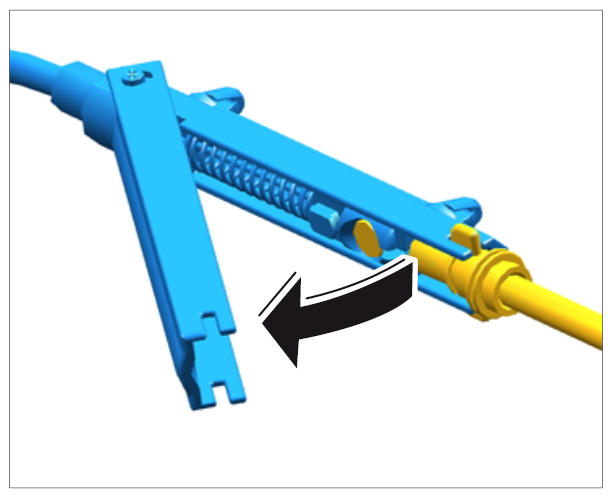

3. 5.3. Open separating coupling.

  Fig 6: Opening Separating Coupling
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

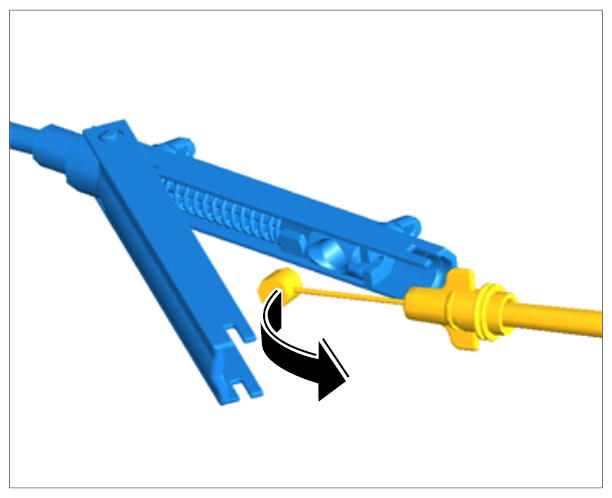

4. 5.4. Remove cable from the mounting.

  Fig 7: Removing Cable From Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull complete cable out towards the separating coupling.
