Component Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

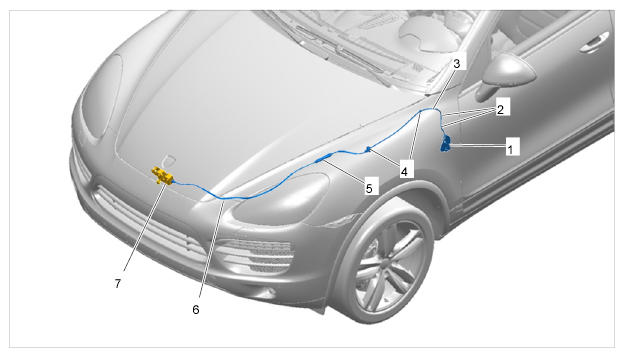

Fig 1: Identifying Installation Position Of Front Lid Release
G09939221Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Front lid release
  2. Clips
  3. Lid release cable to separating coupling
  4. Rubber sleeve
  5. Separating coupling
  6. Separating coupling cable to lid lock
  7. Lid lock
