Checking Closing Function Of Lid Lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check closing function of lid lock.

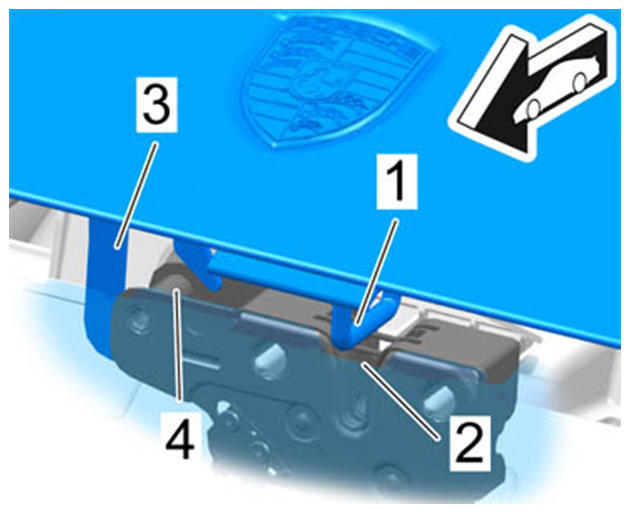

    Fig 1: Checking Closing Function Of Lid Lock
    G09939234Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Close the lid fully.
    2. 1.2. Release the lid.
    3. 1.3. Check that the hook -3-  holds the lid down.
    4. 1.4. Release the hook until the bolt on the lower part of the lock -4-  is free.
