Removing Left Cross Panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Unclip plug connections -1- from the bracket.

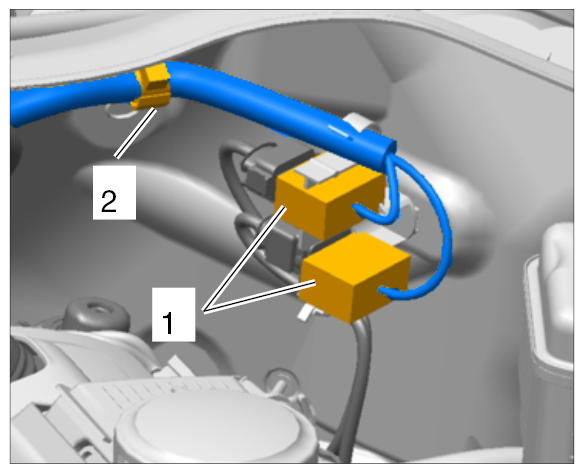

Fig 1: Identifying Plug Connections From Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip wire harness -2- from the bracket.
Unscrew three fastening screws -3- .

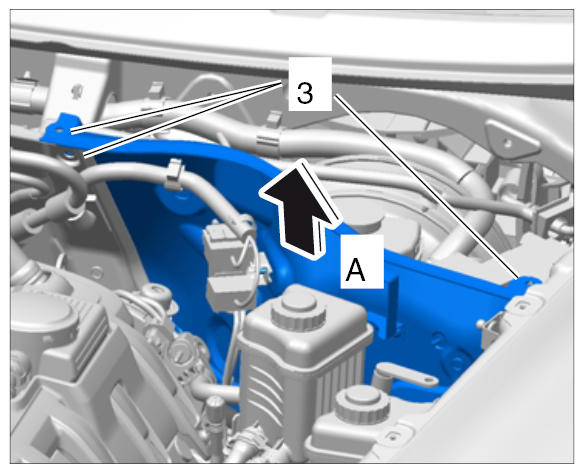

Fig 2: Removing Left Cross Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift cross panel up and remove it -A- .
