Removing Outer Upper Side Member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen welded joints.

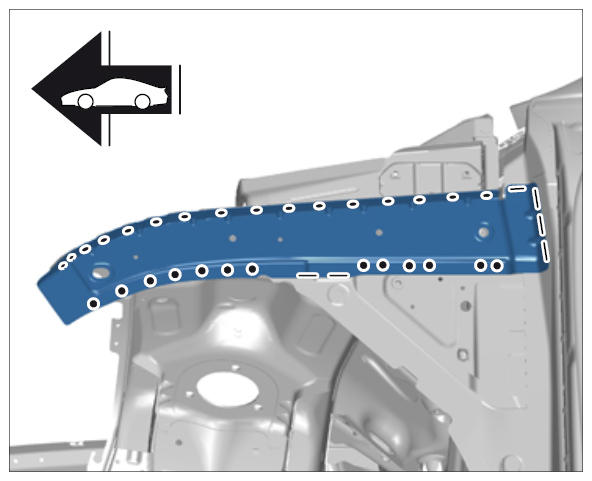

    Fig 1: Identifying Welded Joints Outer Upper Side Member
    G09938257Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Drill out spotwelds using spotweld drill  .
    2. 1.2. Grind down MIG seams.
  2. Remove outer upper side member.
