Installing Wing Mounting Point

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure the wing mounting point.
Information

Resistance spot-weld spotwelds A when the outer upper side member is removed.

Plug-weld spotwelds A using inert gas when the outer upper side member is installed.
Weld in the wing mounting point.

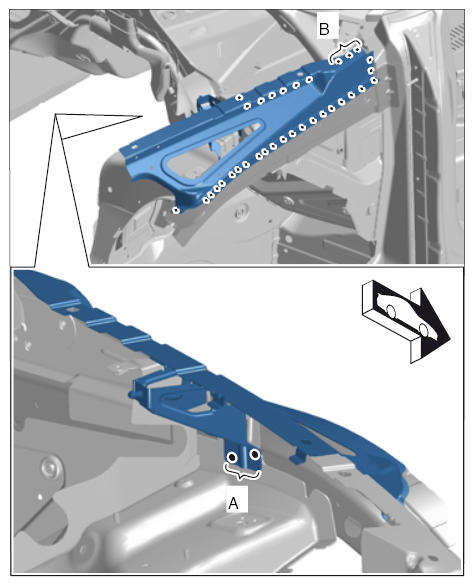

Fig 1: Identifying Weld In Wing Mounting Point
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Resistance spot-weld the wing mounting point.
2. 2.2. Plug-weld the wing mounting point in area -B- using inert gas.
