Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance 1
Wing to A-pillar	Screw, M6 x 16, Item 1	Tightening torque	9 Nm (6.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)

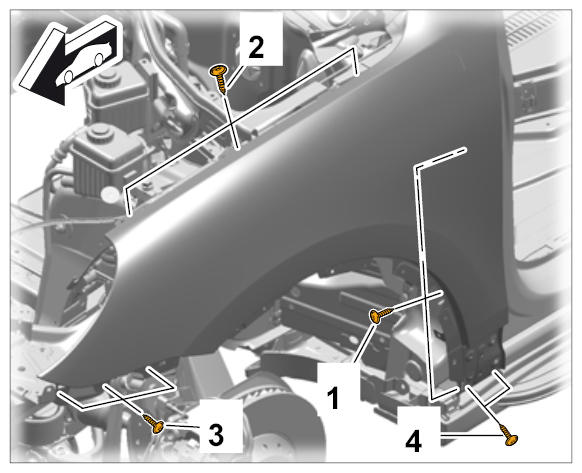

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for wing
Top of wing to longitudinal member	Screw, M6 x 16, Item 2	Tightening torque	9 Nm (6.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for wing
Front side wing to longitudinal member	Screw, M6 x 16, Item 3	Tightening torque	9 Nm (6.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for wing
Lower part of wing to door sill	Screw, M6 x 16, Item 4	Tightening torque	9 Nm (6.5 ftlb.)	+/-1 Nm (+/-0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for wing
