Removing Wing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

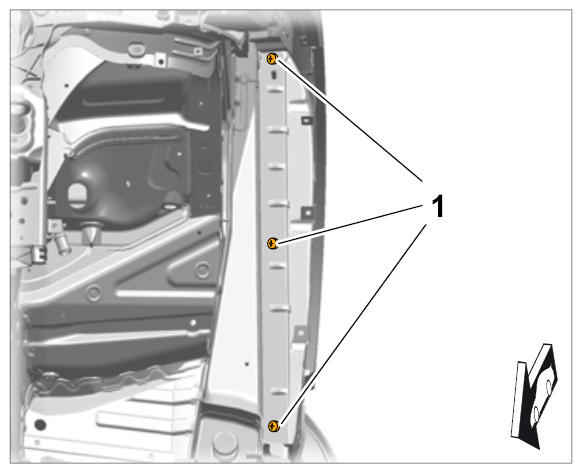

Unscrew fastening screws -1- securing wing to A-pillar.

Fig 1: Identifying Wing To A-Pillar Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

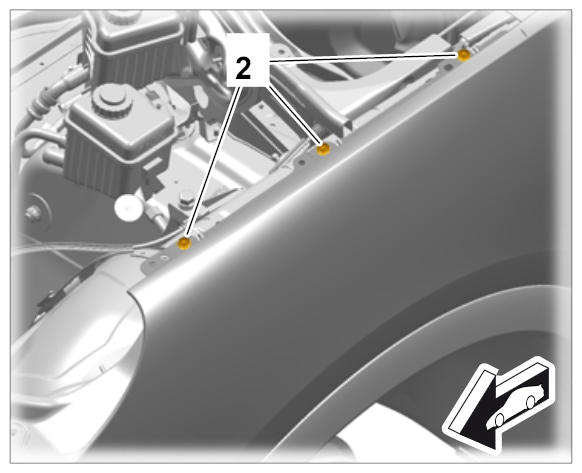

Unscrew fastening screws -2- securing top of wing to longitudinal member.

Fig 2: Identifying Wing To A-Pillar Fastening Screws (Top Of Wing To Longitudinal Member)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

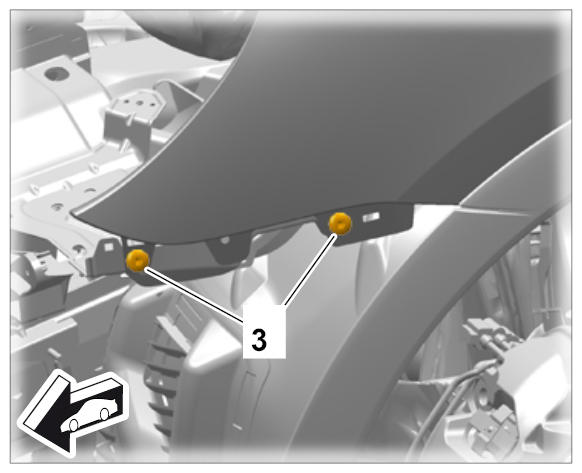

Unscrew fastening screws -3- securing front wing at the side to longitudinal member.

Fig 3: Identifying Wing To A-Pillar Fastening Screws (Side To Longitudinal Member)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen door entry guard at the front. → 663119 REMOVING AND INSTALLING DOOR ENTRY GUARD

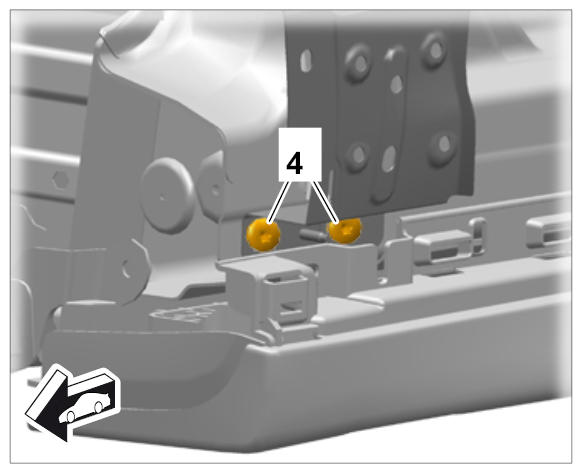

Press door entry guard down carefully and unscrew fastening screws -4- securing lower part of wing to door sill.

Fig 4: Identifying Wing To A-Pillar Fastening Screws (Lower Part Of Wing To Door Sill)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully separate wing from the sealant on the A-pillar and remove it.
