Preparing Wing Strut For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean the welding areas.
1. 1.1. Grind both sides of the connecting flanges of the wing strut in the marked areas until bare.

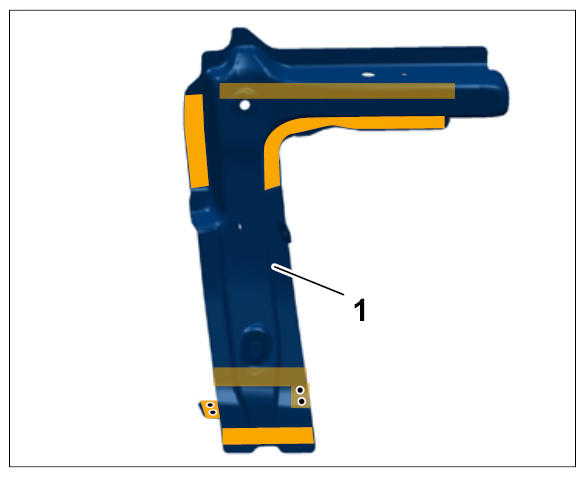

  Fig 1: Identifying Welding Areas Wing Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Drill holes for plug-welding using inert gas on the lower longitudinal member using an 8.0-mm drill bit.
Coat all spot-weld flange areas with zinc powder paint.
