Preparing Connection Areas Of The Body For Installing Wing Strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean welding and sealing areas.
1. 1.1. Clean the body connecting flange in the marked areas to remove underbody protection and paint.

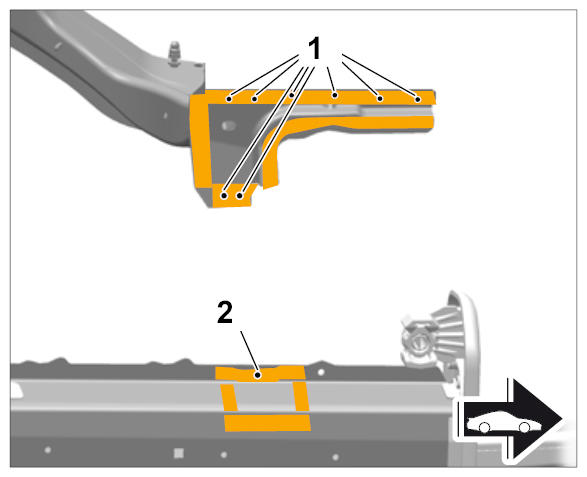

  Fig 1: Identifying Drill Holes For Plug-Welding On Wing Strut
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Drill holes -1- for plug-welding using inert gas at the wheel housing using an 8.0-mm drill bit.
3. 1.3. Drill out hole -2- for plug-welding using inert gas on the lower longitudinal member using an 8.0-mm drill bit.
4. 1.4. Grind connecting flanges until bare on both sides.
Coat all spot-weld flange areas with zinc powder paint.
