Removing Spring Strut Mount

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Grind down spotwelds.

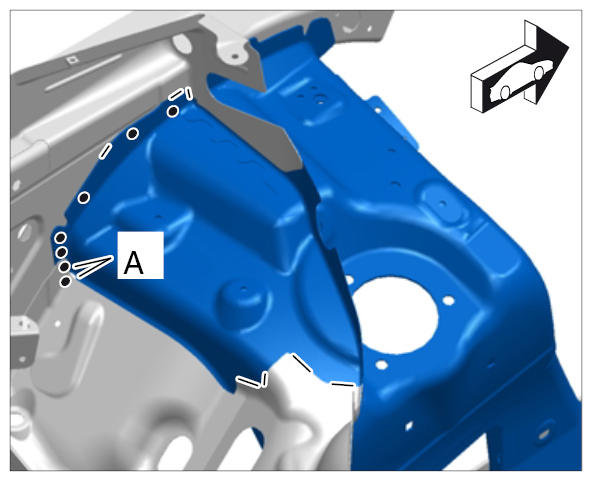

Fig 1: Spring Strut Mount Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen welded joints.

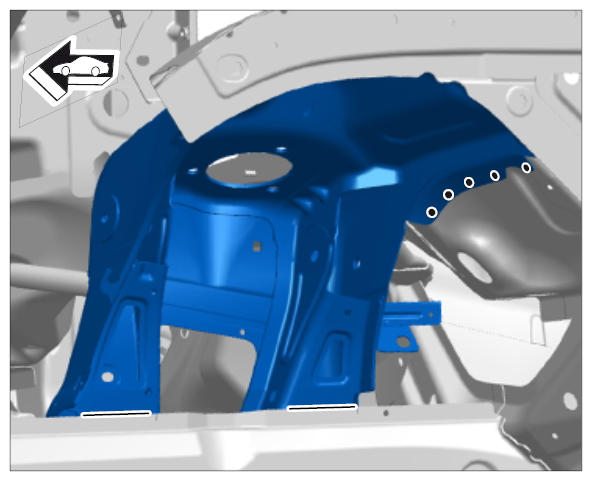

Fig 2: Identifying Spring Strut Mount Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Grind down spotwelds.
2. 2.2. Grind down MIG seams.
Loosen welded joints.

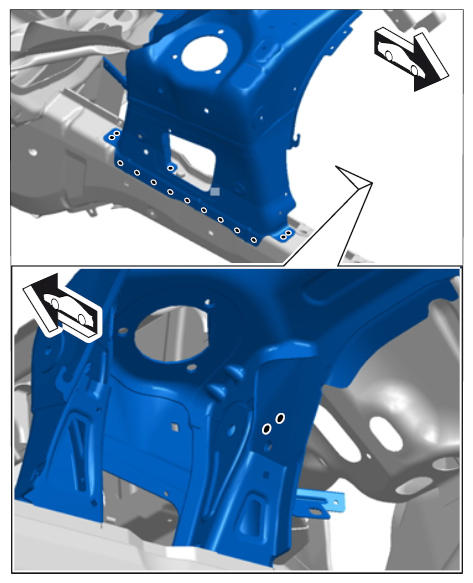

Fig 3: Identifying Spring Strut Mount Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Grind down spotwelds in the area -A- through two plate thicknesses.
2. 3.2. Grind down spotwelds.
3. 3.3. Grind down MIG seams.
Loosen welded joints.

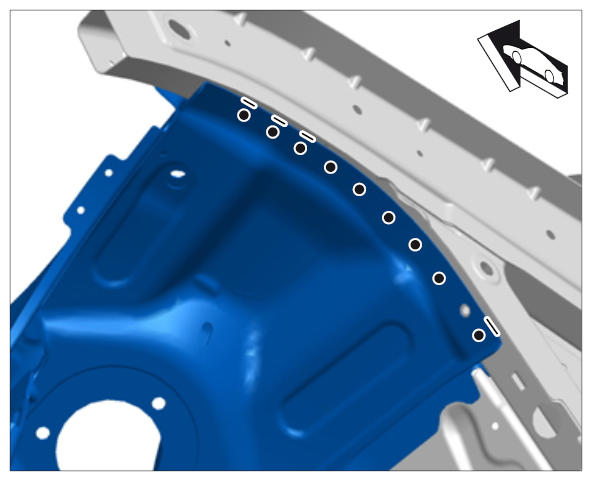

Fig 4: Identifying Spring Strut Mount Welded Joints
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Grind down spotwelds.
2. 4.2. Grind down MIG seams.
Loosen welded joints.

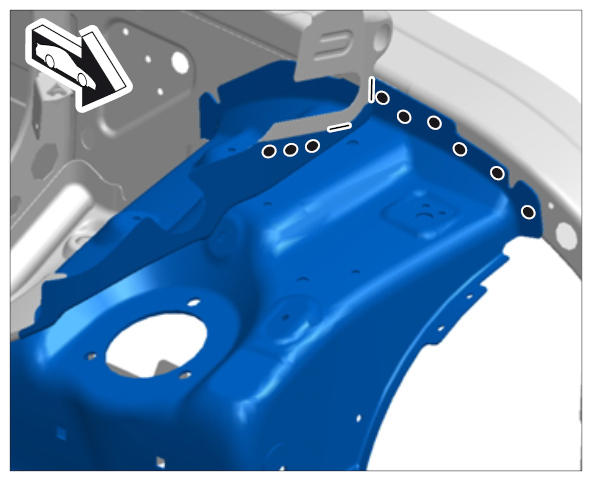

Fig 5: Identifying Spring Strut Mount Spotwelds (Right)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Grind down spotwelds.
2. 5.2. Grind down MIG seams.
Heat connection areas using a hot-air gun.

Fig 6: Identifying Spring Strut Mount Plug Weld (Left)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove spring strut mount.
