Preparing Spring Strut Mount For Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Drill out spotwelds using spotweld drill bit and remove plenum panel closing element.

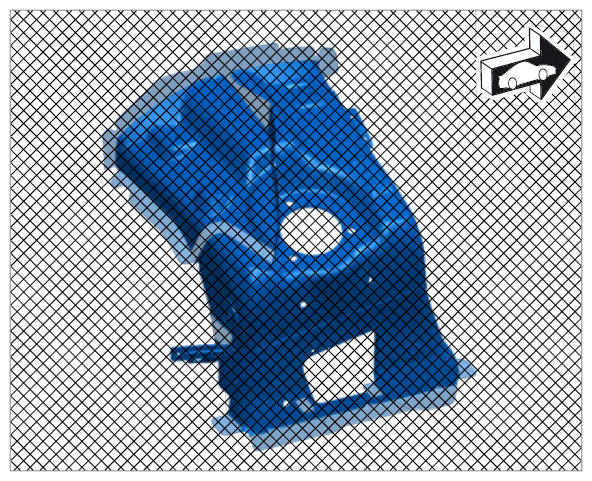

Fig 1: Identifying Spring Strut Mount (Right)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Drill holes (Ø 10 mm) for plug welding using inert gas.

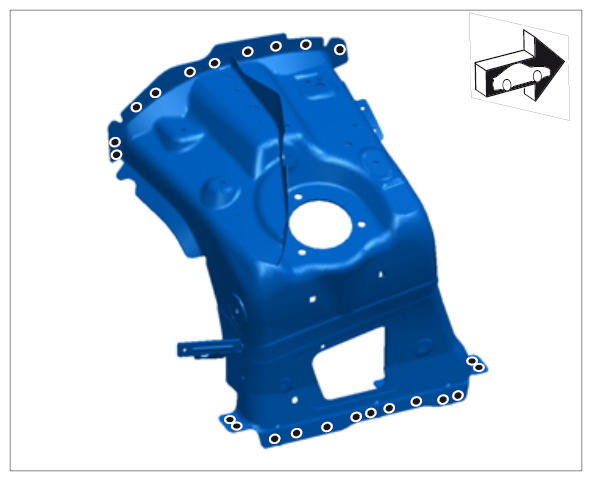

Fig 2: Identifying Spring Strut Mount Drill Holes (Right)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

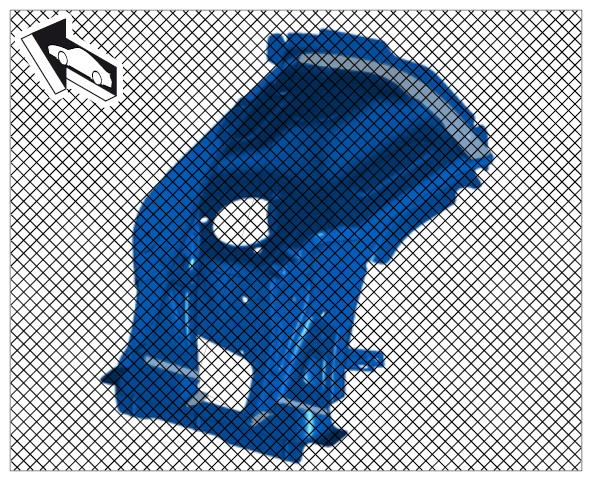

Fig 3: Identifying Spring Strut Mount Drill Holes (Left)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Grind both sides of connecting flanges of spring strut mount in the marked areas until bare.

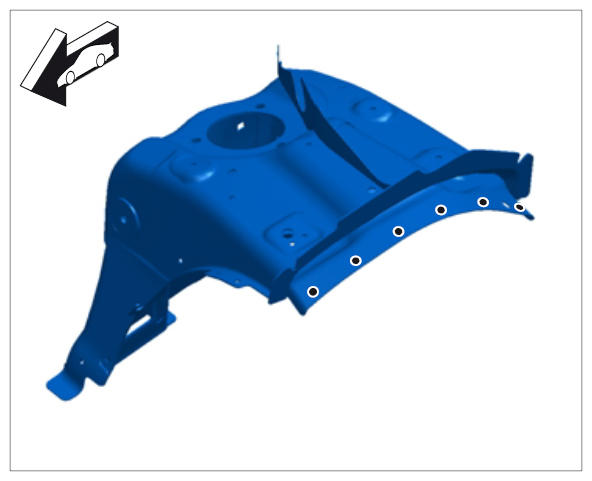

Fig 4: Identifying Connecting Flanges Spring Strut Mount (Right)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

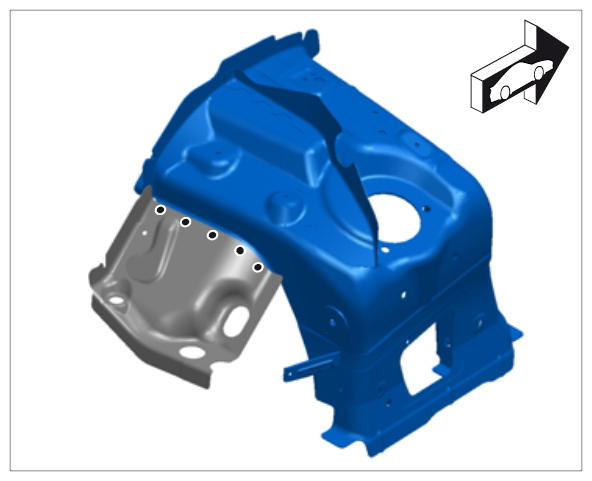

Fig 5: Identifying Connecting Flanges Spring Strut Mount (Left)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
