Installing Spring Strut Mount

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit and secure spring strut mount.
Weld in spring strut mount.

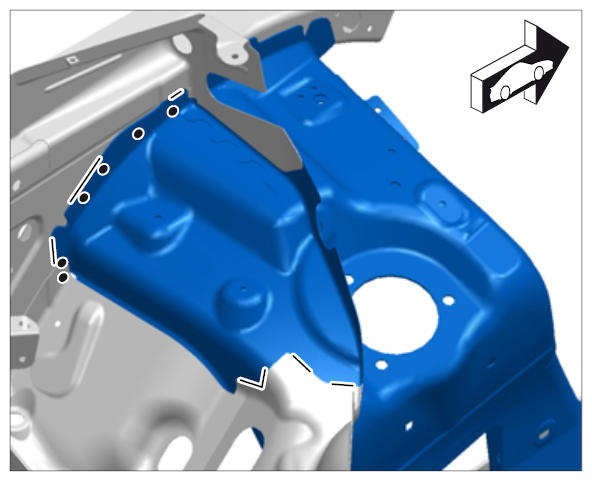

Fig 1: Installing Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Plug-weld spring strut mount using inert gas.
2. 2.2. Also spot-weld spring strut mount using inert gas.
3. 2.3. Resistance spot-weld spring strut mount in the area -A- .
Weld in spring strut mount.

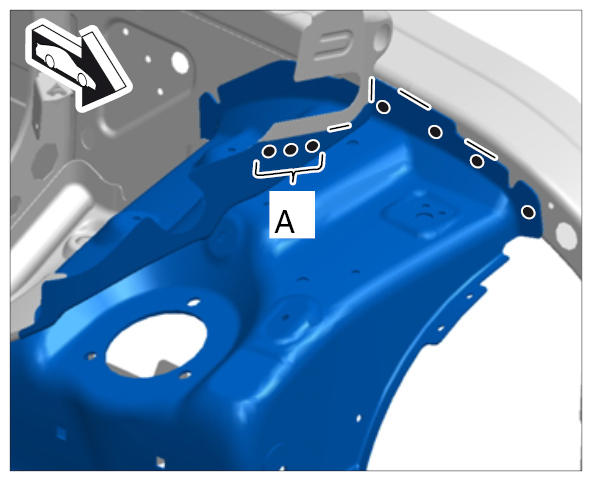

Fig 2: Identifying Weld In Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Resistance spot-weld spring strut mount.
2. 3.2. Spot-weld spring strut mount using inert gas.
Weld in spring strut mount.

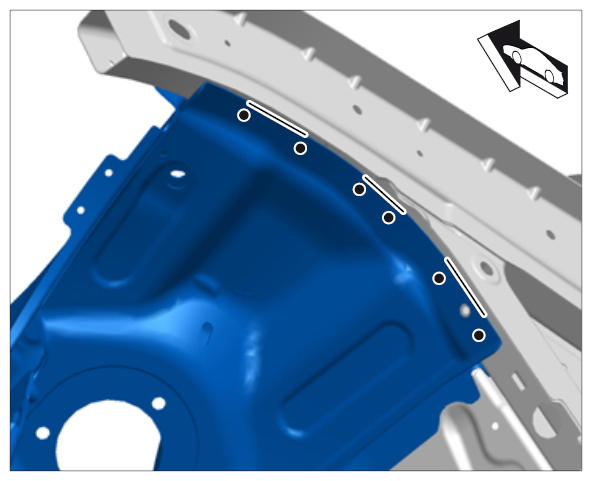

Fig 3: Identifying Weld In Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Plug-weld spring strut mount using inert gas.
2. 4.2. Also spot-weld spring strut mount using inert gas.
Weld in spring strut mount.

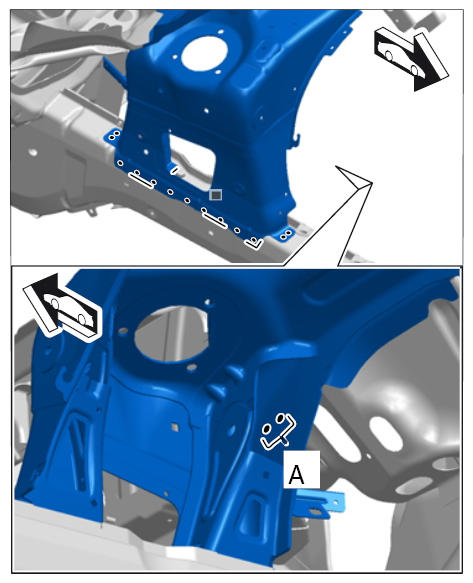

Fig 4: Identifying Weld In Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Resistance spot-weld spring strut mount in the area -A- .
2. 5.2. Plug-weld spring strut mount using inert gas.
3. 5.3. Also spot-weld spring strut mount using inert gas.
Weld in spring strut mount.

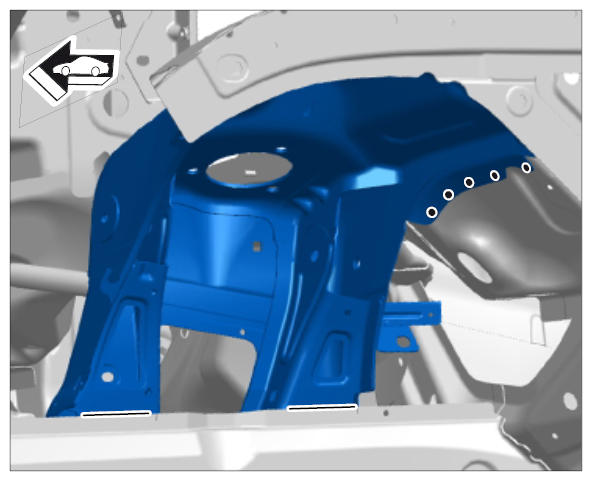

Fig 5: Identifying Weld In Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Plug-weld spring strut mount using inert gas.
2. 6.2. Spot-weld spring strut mount using inert gas.
