Removing Frame Head (Impact Absorber Mount)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

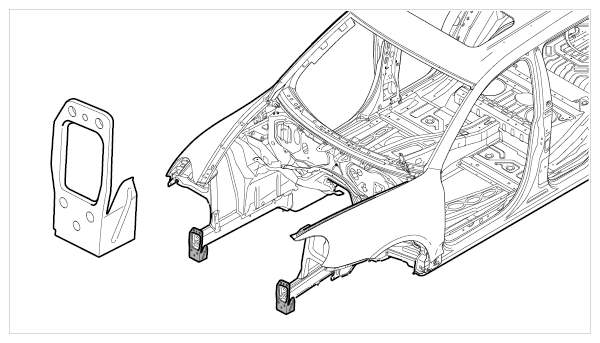

Fig 1: Frame Head Component Location (Impact Absorber Mount)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

All straightening work on the body in the connection area of the sheetmetal parts to be replaced must be completed before the damaged parts are removed.

Remove frame head (impact absorber mount).
1. 1.1. Grind down the MIG-welded joints between the frame head (impact absorber mount) and top side member using the parting grinder → see Fig 2 (areas -A- , -B- , -C- , -D- ).

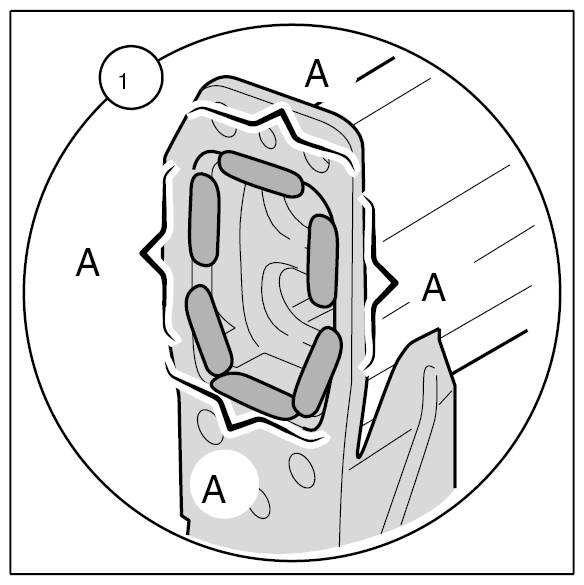

  Fig 2: Identifying MIG-Welded Joints Between Frame Head - Impact Absorber Mount (1 Of 5)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

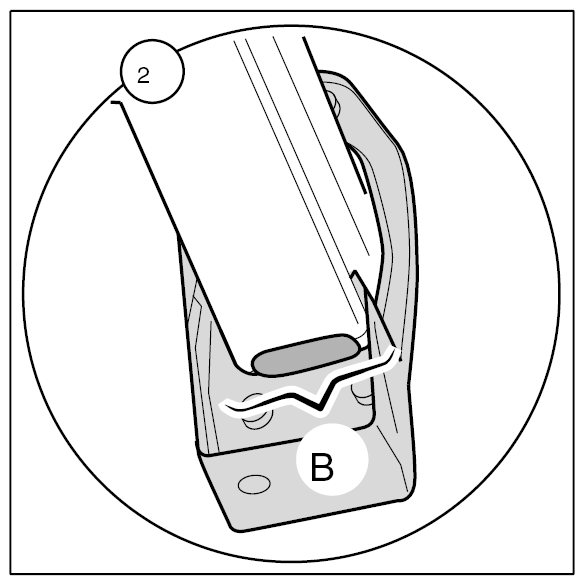

  Fig 3: Identifying MIG-Welded Joints Between Frame Head - Impact Absorber Mount (2 Of 5)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

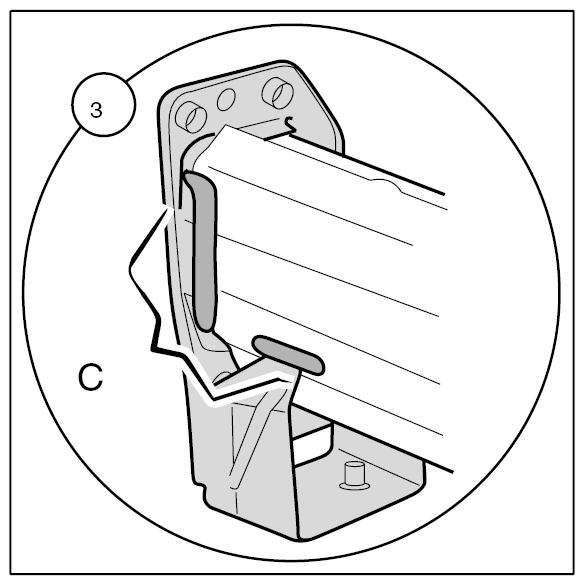

  Fig 4: Identifying MIG-Welded Joints Between Frame Head - Impact Absorber Mount (3 Of 5)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

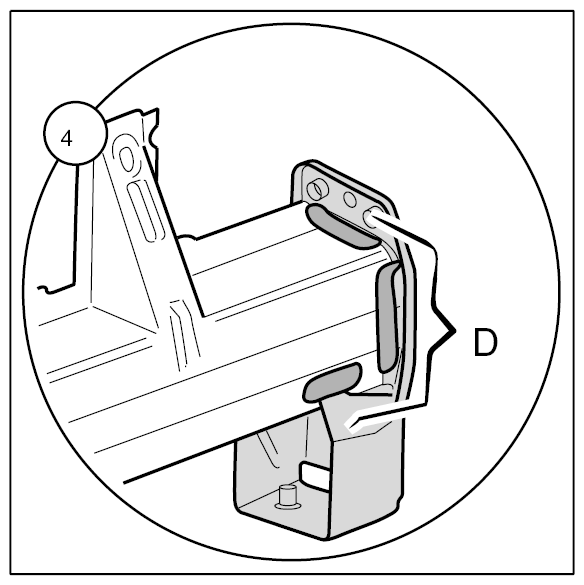

  Fig 5: Identifying MIG-Welded Joints Between Frame Head - Impact Absorber Mount (4 Of 5)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 6: Identifying MIG-Welded Joints Between Frame Head - Impact Absorber Mount (5 Of 5)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove frame head (impact absorber mount).

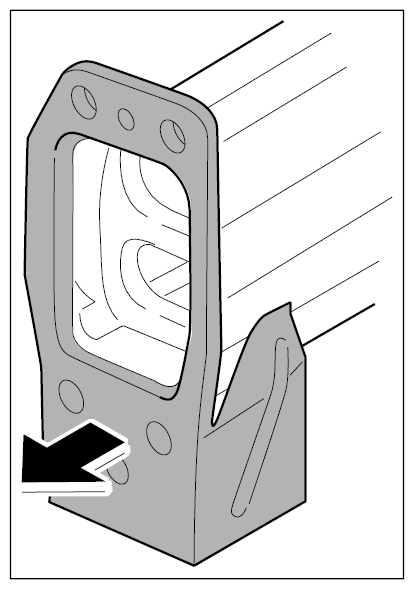

Fig 7: Removing Frame Head (Impact Absorber Mount)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
