Preparing Connection Areas Of The Body For Installing The Frame Head (Impact Absorber Mount)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Clean welding and sealing areas.
1. 1.1. Clean the body connection flanges of undersealing, adhesive residue and paint in the marked areas using a hot-air gun or rotary brush. Grind the connection flange until bare.

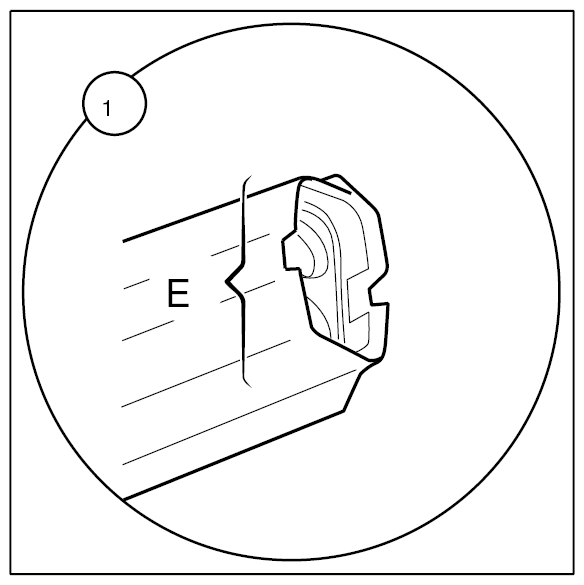

  Fig 1: Identifying Body Connection Areas (1 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

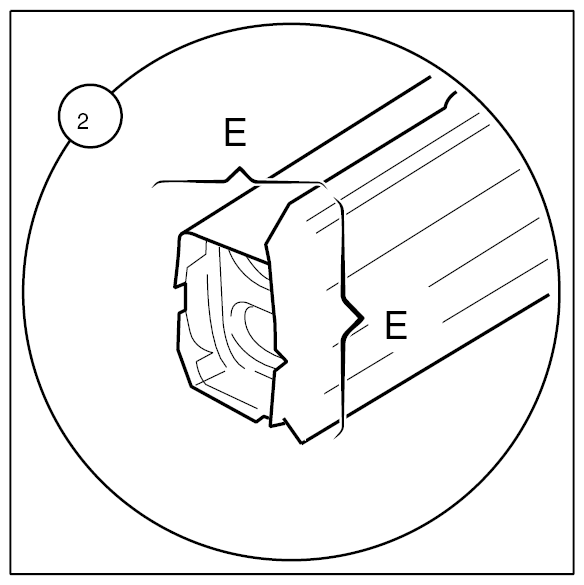

  Fig 2: Identifying Body Connection Areas (2 Of 2)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Coat spot-weld flange areas with zinc powder paint.
1. 2.1. Coat all spot-weld flange areas with zinc powder paint.
