Installing Frame Head (Impact Absorber Mount)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fit the frame head (impact absorber mount) to the body.
1. 1.1. Position the frame head (impact absorber mount) against the body and fix in place with a straightening attachment.

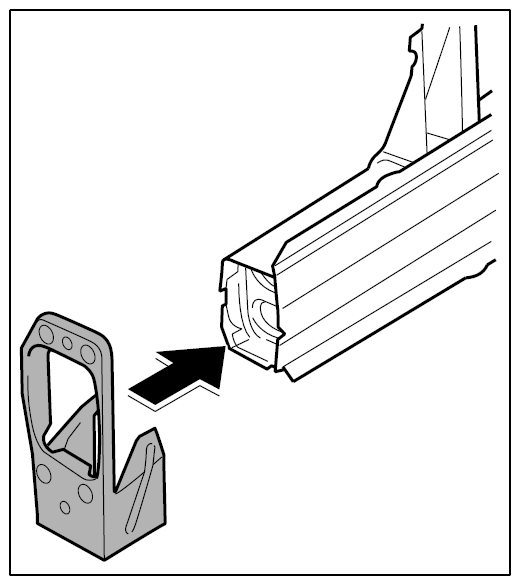

  Fig 1: Installing Frame Head (Impact Absorber Mount)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Fix the frame head (impact absorber mount) to the body with tensioning clamps.
Weld the frame head (impact absorber mount) using the inert-gas arc welding process → see Fig 2.

Fig 2: Identifying Frame Head (Impact Absorber Mount) To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Apply a full weld to the frame head (impact absorber mount) in the areas -A- , -B- , -C- and -D- using inert gas.

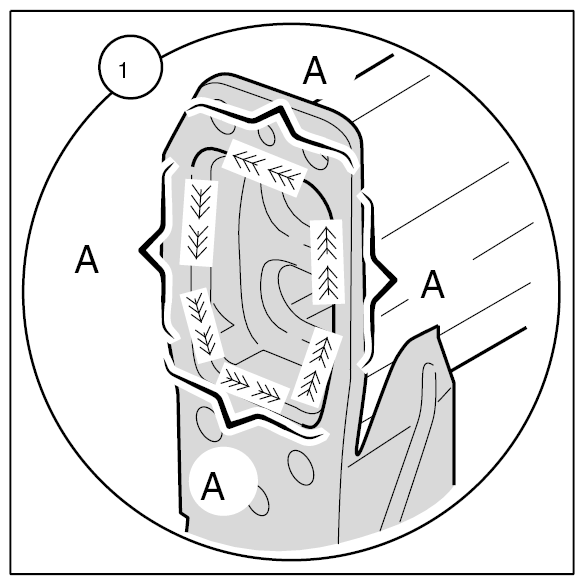

  Fig 3: Identifying Frame Head Welded Areas (1 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

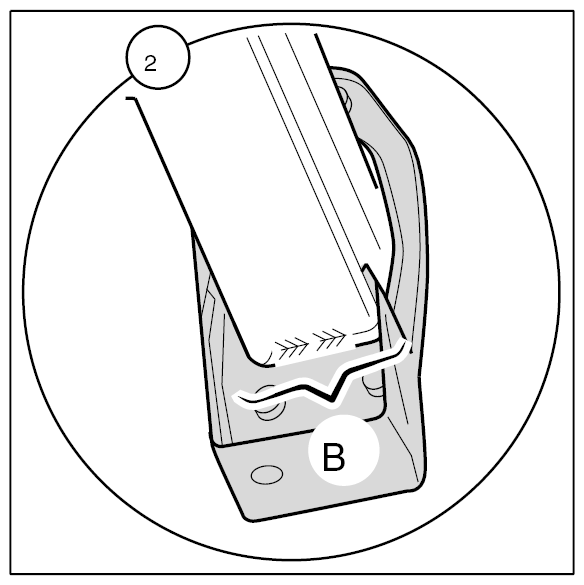

  Fig 4: Identifying Frame Head Welded Areas (2 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

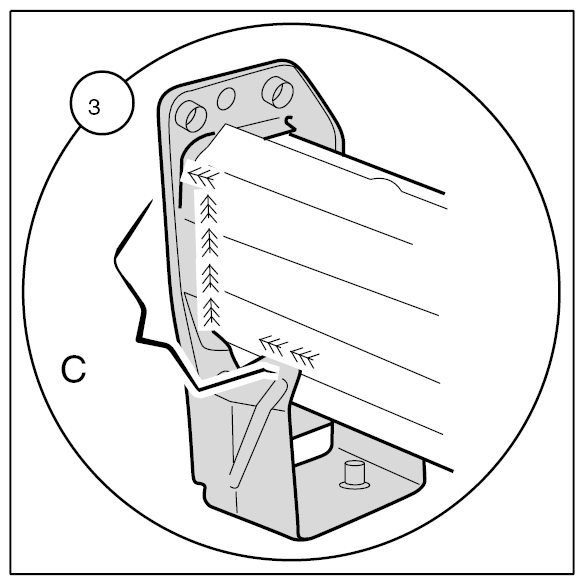

  Fig 5: Identifying Frame Head Welded Areas (3 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

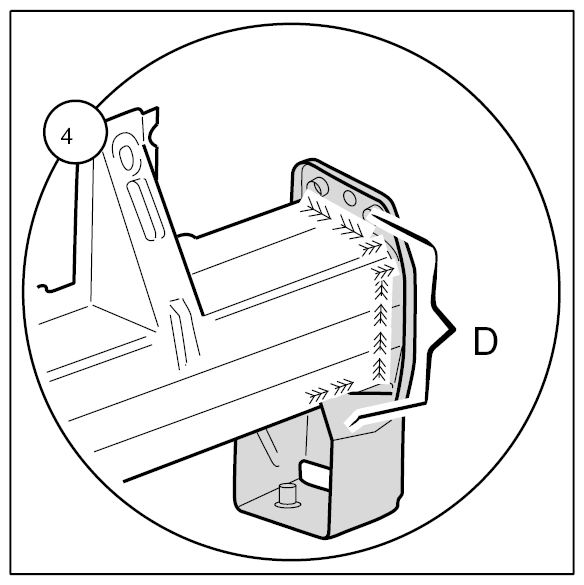

  Fig 6: Identifying Frame Head Welded Areas (4 Of 4)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
