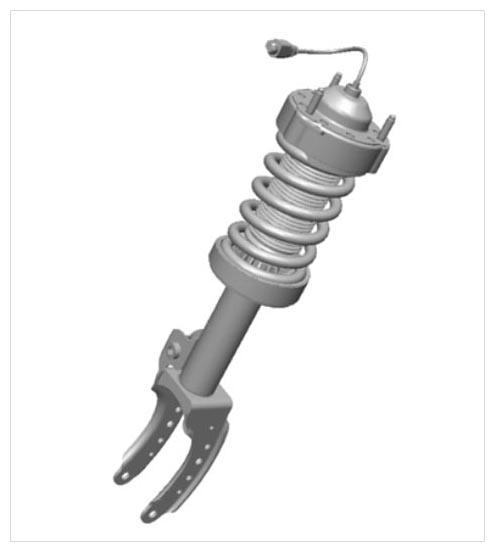

Component Overview
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
The steel springs are not relevant for the Cayenne Turbo.
Standard Cayenne Turbo equipment: Air springs with levelling system and height adjustment.

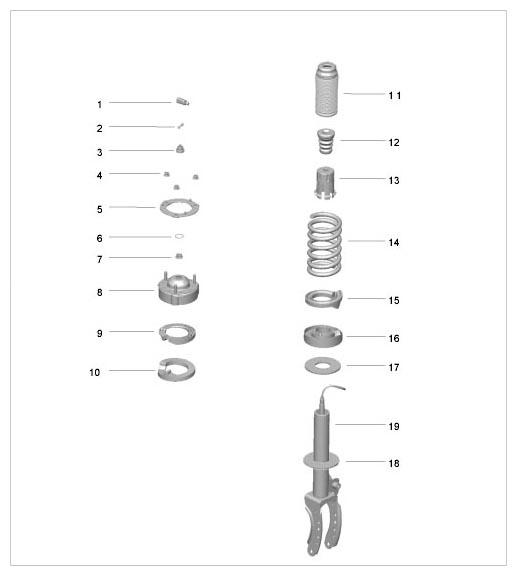

| No. | Designation | Note |
|---|---|---|
| -1- | Connector housing | Only for PASM (Porsche Active Suspension Management). |
| -2- | Grommet (connector) | Only for PASM. |
| -3- | Grommet (cable) | Only for PASM. |
| -4- | Hexagon nut (3x) | Please use new hexagon nuts. |
| -5- | Ring | |
| -6- | Cap | Not for PASM. |
| -7- | Lock nut | Please use a new lock nut. |
| -8- | Concave support Supporting mount | Concave support and supporting mount are a complete unit and cannot be disassembled. |
| -9- | Top support | Fit together at the correct position with top support. (Align triangular markings all around). |
| -10- | Top base | Fit together at the correct position with top support. (Align triangular markings all around). |
| -11- | Boot | |
| -12- | Rubber stop | |
| -13- | Cap | |
| -14- | Coil spring | |
| -15- | Bottom base | Fit together at the correct position with bottom support. (Align triangular markings all around). |
| -16- | Bottom support | Fit together at the correct position with bottom support. (Align triangular markings all around). |
| -17- | Spacer | Number of spacers depends on the tolerance class (0 spacers, 1 spacer or 2 spacers). The number depends on the number of grey dots on the coil spring. |
| -18- | Concave washer | |
| -19- | Shock absorber |
