Subsequent Work For Removing And Installing Spring Strut (Steel Springs) On Driver's Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Vehicles with PDCC only:

    Secure holder for PDCC reservoir at the threaded joints -1, 2-  at the left of the engine compartment.

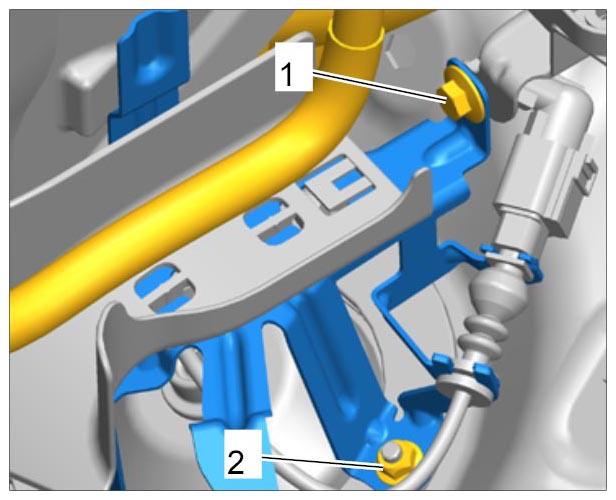

    Fig 1: Identifying Holder For PDCC Reservoir - Cable Guide
    G09935270Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Secure PDCC reservoir at the fastening nut. → 430955 REPLACING RESERVOIR (PDCC)
