Installing Front Spring Strut (Steel Springs With PASM)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

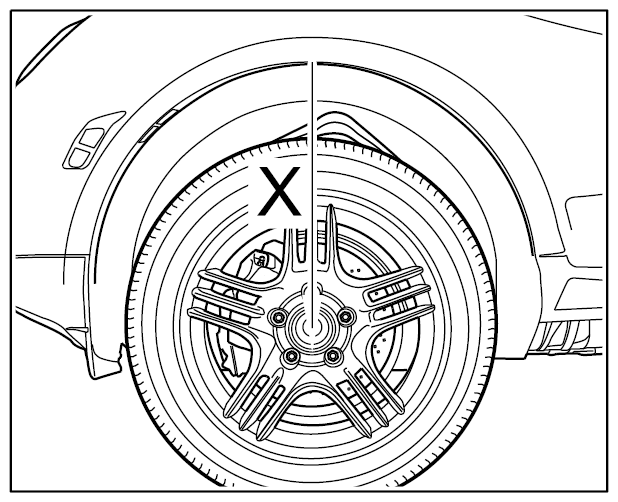

All screws and bolts on the axle must be tightened in vehicle position . Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X from lower edge of wing to center of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

Fig 1: Adjusting Dimension X Lower Edge Of Wing To Centre Of Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Visually inspect all parts .
Replace self-locking nuts .
Replace all expansion screws (screws fitted using torque angle tightening procedure) .
Use correct tightening torques and torque angle . → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Remove transport protection cap.

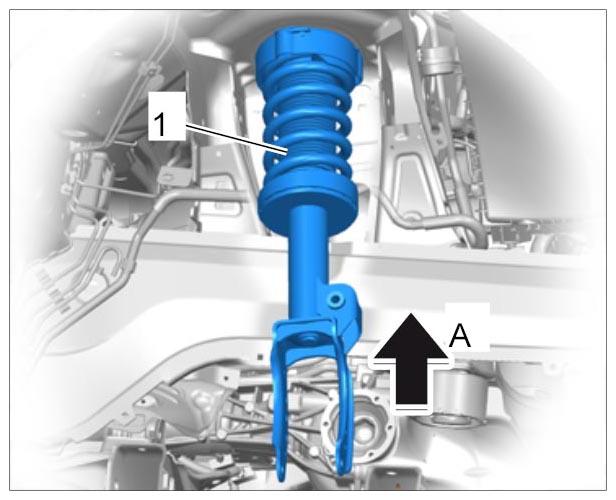

Insert the spring strut -1- into the vehicle -A- .
Position the pull-ring (driver's side) or the holder (passenger's side) at the top of the wheel housing.

Guide the wire harness through the opening in the spring strut mount.

Fig 2: Installing Spring Strut (Steel Spring)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Before fitting the spring strut, you may have to remove the protection cap on the spring strut.

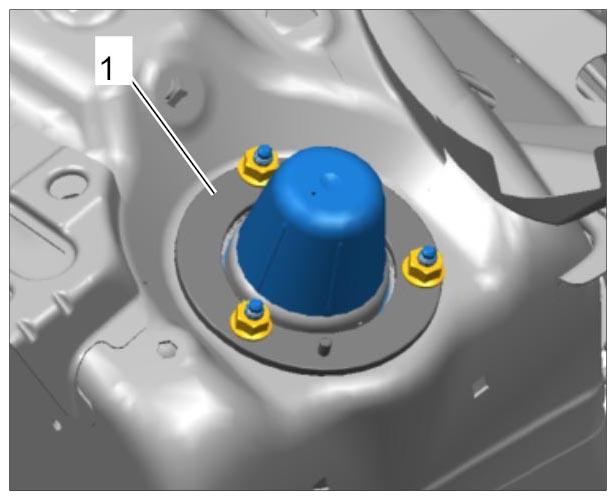

Check that the pull-ring -1- is seated correctly.

Fig 3: Identifying Pull-Ring Seating (With Protection Cap)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
For V8:

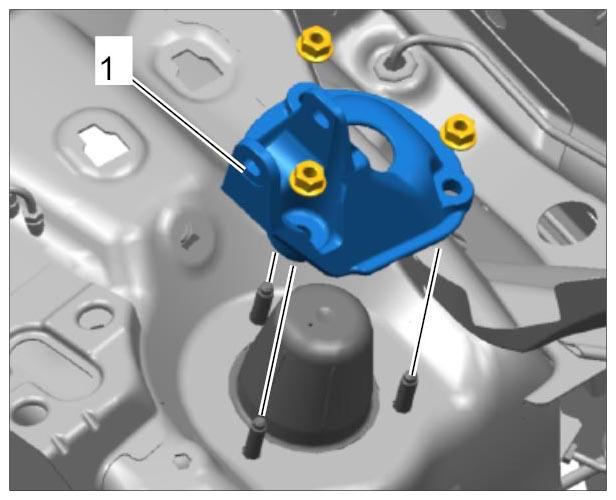

Check that the torque support holder -1- is seated correctly.

Fig 4: Identifying Torque Support Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

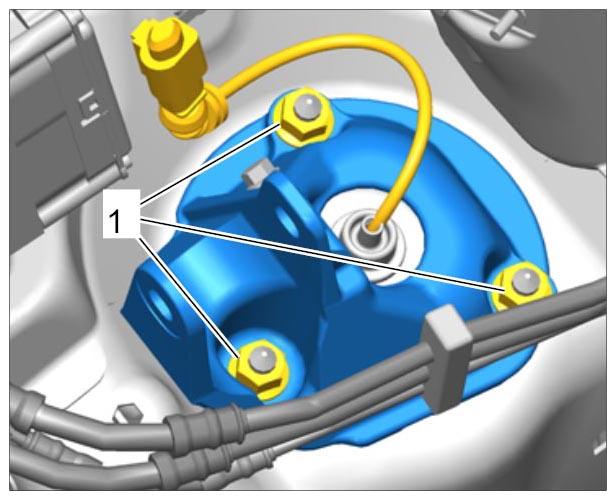

Screw in and tighten fastening nuts -1- on upper spring strut. → 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

Fig 5: Identifying Upper Spring Strut Mounting (Steel Spring)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

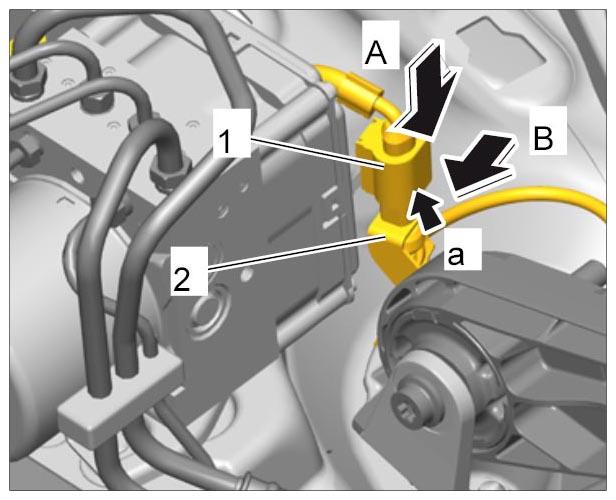

Plug in electric plug connection -1- for the spring strut -A- and lock it -a- .

Fig 6: Installing Plug Connection For Spring Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip wire harness into the holder -2- (-B- ).
