Removing Front Connecting Link

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wheel bearing housing raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Only for 19-inch brake system:
Remove air guide. → 407719 REMOVING AND INSTALLING FRONT STABILIZER (PDCC)
Raise the vehicle.
Loosen the bottom fastening screw -2- on the connecting link -5- .

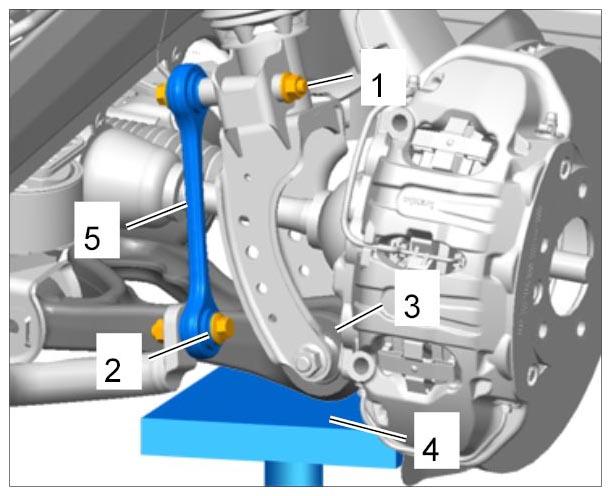

Fig 1: Adjusting Front Connecting Link
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the lower axle support -3- as far as required using a suitable jack -4- so that the upper fastening screw -1- on the connecting link can be loosened and removed easily.
Remove the connecting link -5- .
