Removing Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original .

If installed: Remove the fastening screws on the air guide -8- at the left and right. Use a suitable tool to counter the fastening nuts -9- .

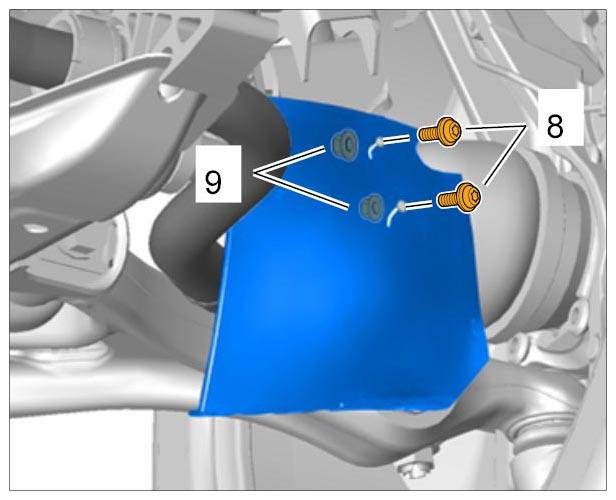

Fig 1: Identifying Air Guide And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove connecting link at the left and right of the anti-roll bar.
Unscrew and remove the four fastening screws on the anti-roll bar and remove the clips.
Carefully pull out the anti-roll bar.
