Installing Anti-Roll Bar

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Wheel bearing housing raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

The anti-roll bar must be positioned before tightening the fastening screws on the anti-roll-bar mount (= front-axle support). Highest point on anti-roll bar arm to lower edge of longitudinal member, dimension -Y- .

Dimension -Y- . → Control value: 165 mm .

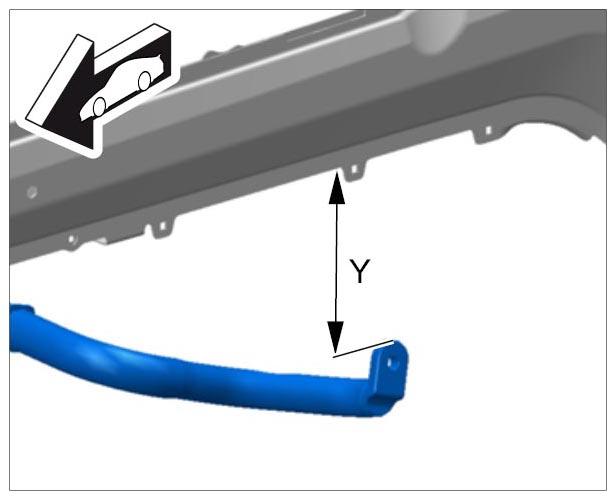

Fig 1: Checking Anti-Roll Bar Dimension - Y

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

This ensures that the position of the anti-roll bar in the support corresponds to the normal vehicle position.

Information

All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Measurement -1- from the lower edge of the wing to the middle of the vehicle axle corresponds to vehicle position. The current height values can be found in → 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT . Always observe the following points!

Fig 2: Checking Dimension 1 - Centre Of Wheel To Lower Edge Of Wing (Rear Axle)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
On vehicles with air springs, the respective air spring must be bled using the Porsche System Tester . → 4301IN BLEEDING AND FILLING THE LEVELLING SYSTEM
Screws and nuts are Geomet-coated and must not be greased .

Position the anti-roll bar.
Install the two clips.
Fit the four fastening screws on the anti-roll bar and tighten hand-tight.
Fit the fastening screws for the anti-roll bar at the connecting links and tighten hand-tight.
Tighten the four fastening screws on the anti-roll bar.
Tighten the fastening screws on the anti-roll bar at the connecting links.
If installed: Fit the fastening screws on the air guide -8- at the left and right. Use a suitable tool to counter the fastening nuts -9- .

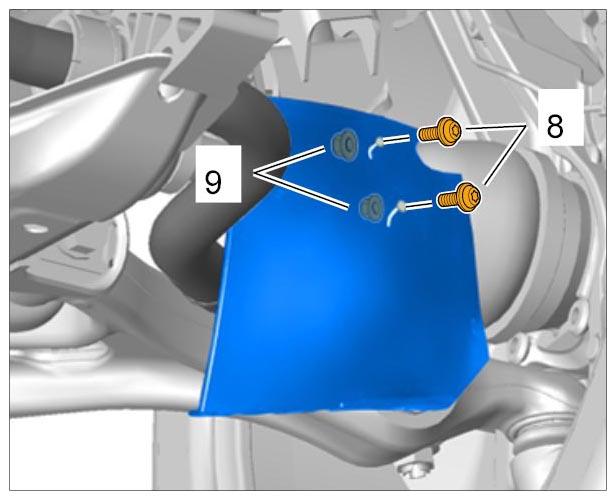

Fig 3: Identifying Air Guide And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
