Preliminary Work For Removing And Installing Front Drive Shaft

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hub cap using puller hook 9229  and loosen drive shaft mounting at the side of the wheel before raising the vehicle. Also press the brake while doing so (second mechanic required). → 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT

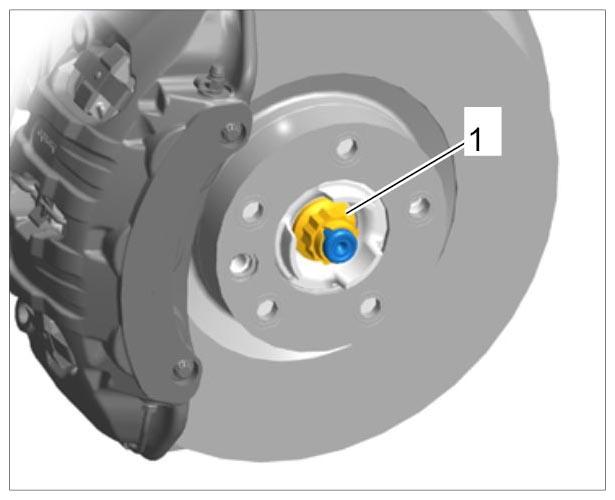

    Fig 1: Identifying Lock Nut On Drive Shaft
    G09935145Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. For 19-inch brake system:

    Remove air guide. → 407719 REMOVING AND INSTALLING ANTI-ROLL BAR

  3. Remove connecting link. → 407819 REMOVING AND INSTALLING FRONT CONNECTING LINK
