Removing Upper Trailing Arm (Steel Springs)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip ABS wire harness -1-  at the body -A-  .

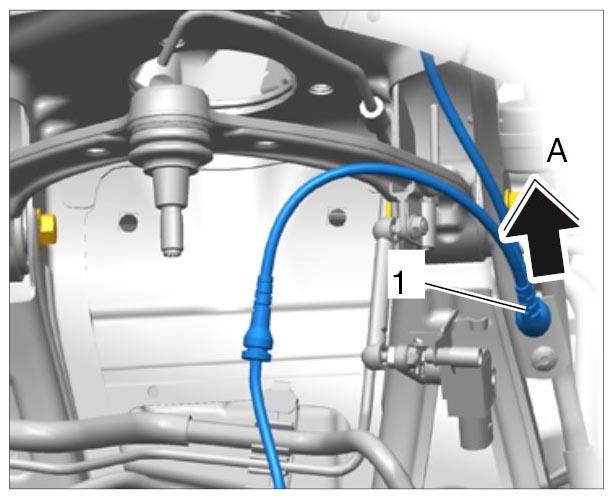

    Fig 1: Identifying Mounting Point For ABS Wire Harness To Body
    G09935071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove level sensor holder from the upper axle support. → 431855 REPLACING FRONT LEVEL SENSOR
  3. Loosen fastening screws -1-  from the upper axle support -2-  .

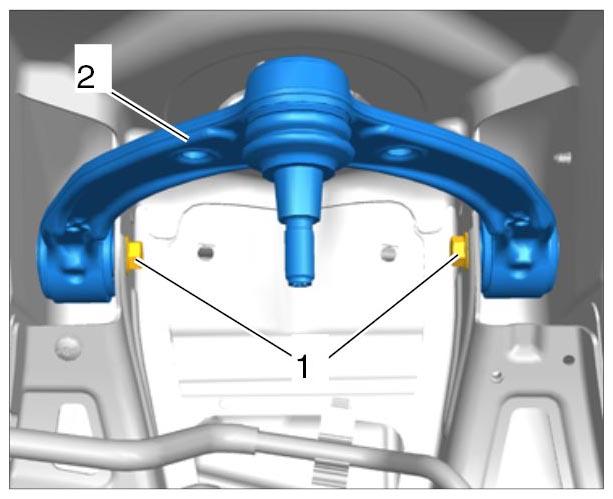

    Fig 2: Identifying Mounting Point For Upper Axle Support
    G09935072Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove axle support.
